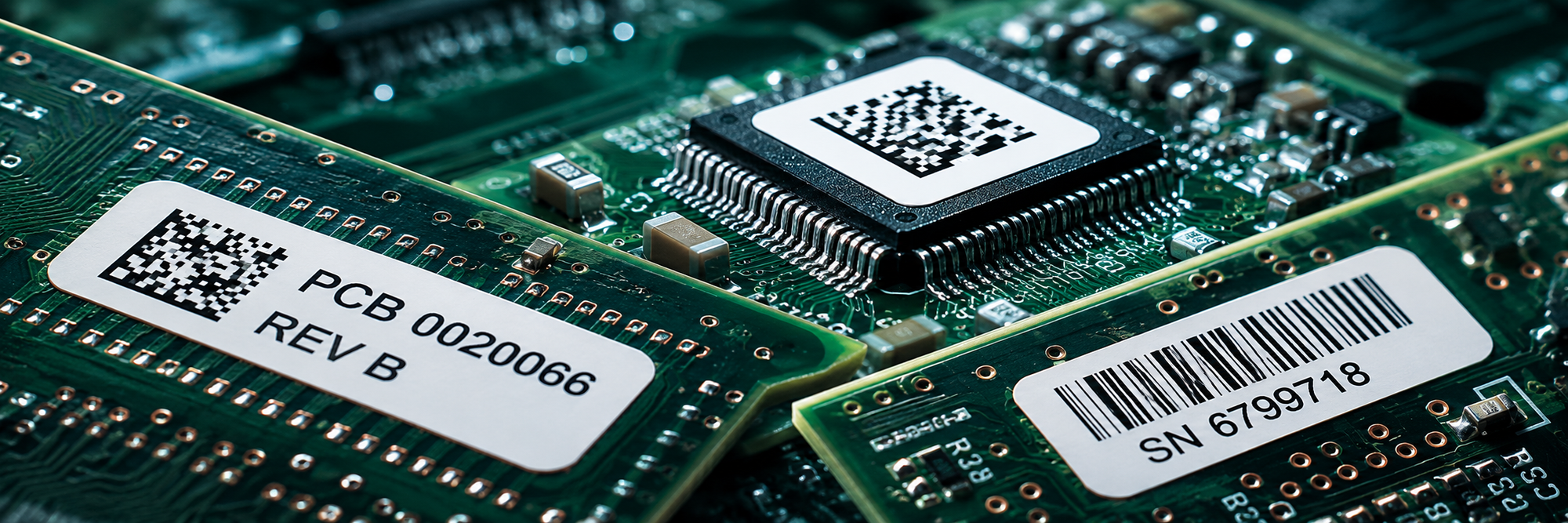

Woolley Test High Temperature PCB Labels for Electronics Manufacturing Traceability

Production-ready PCB labels

Standard labels are not designed for PCB production.

Heat, soldering, flux, IPA, board wash chemicals, abrasion and handling can all expose weaknesses in the wrong material or ribbon. The result can be lifting labels, unreadable codes, rework, downtime or loss of traceability.

That is why we start with the application, not the roll size.

We help you consider:

• Peak temperature and exposure time
• Whether the label is applied before or after reflow
• SMT and wave soldering requirements
• Flux, IPA, solvent and board wash exposure
• Board, component or housing surface
• Label size and available space
• Barcode, QR code or Data Matrix readability
• ESD-safe or static dissipative requirements
• In-house thermal transfer printing and production workflow

For many PCB traceability applications, a high-temperature polyimide label with a suitable resin thermal transfer ribbon is the right starting point. For other electronics applications, polyester, static dissipative materials, tamper-evident labels or component labels may be more appropriate.

The perfect labelling solution depends on your process.

Reliable high-temp labels

Zygology Systems specialises in thermal transfer printing.

For electronics manufacturing, the ribbon is not an accessory. It is part of the labelling system and part of the performance specification.

A reliable PCB labelling solution usually includes:

• A specialist high-temperature label material
• An adhesive suited to the surface and process
• A thermal transfer printable topcoat
• A matched resin, wax/resin or wax ribbon
• A thermal transfer printer capable of sharp, reliable output
• Artwork designed for real-world scan readability

A high-temperature label can still fail if the wrong ribbon is used. A small Data Matrix code can still become unreadable if the print quality is poor. A high-end thermal transfer printer cannot compensate for the wrong material.

We specify the label, ribbon and printer as one complete labelling system.

High-temperature labels, matched ribbons and thermal transfer printers, specified as one PCB labelling system

A PCB label has to survive more than the printer.

It may need to pass through SMT assembly, reflow, wave soldering, board wash, solvents and ESD-controlled handling. It may also need to carry a small barcode, QR code or Data Matrix code that remains readable throughout production.

If the label fails, traceability fails with it.

Zygology Systems helps electronics manufacturers specify the complete high-temperature labelling solution: the right label material, the right adhesive, the right thermal transfer ribbon and the right thermal transfer printer for your process.
