Brady 2HX-1500-2-YL PermaSleeve Wire Marking Sleeves 117120


This product is discontinued. Please fill in the form below and we will contact you with an alternative available product

Description

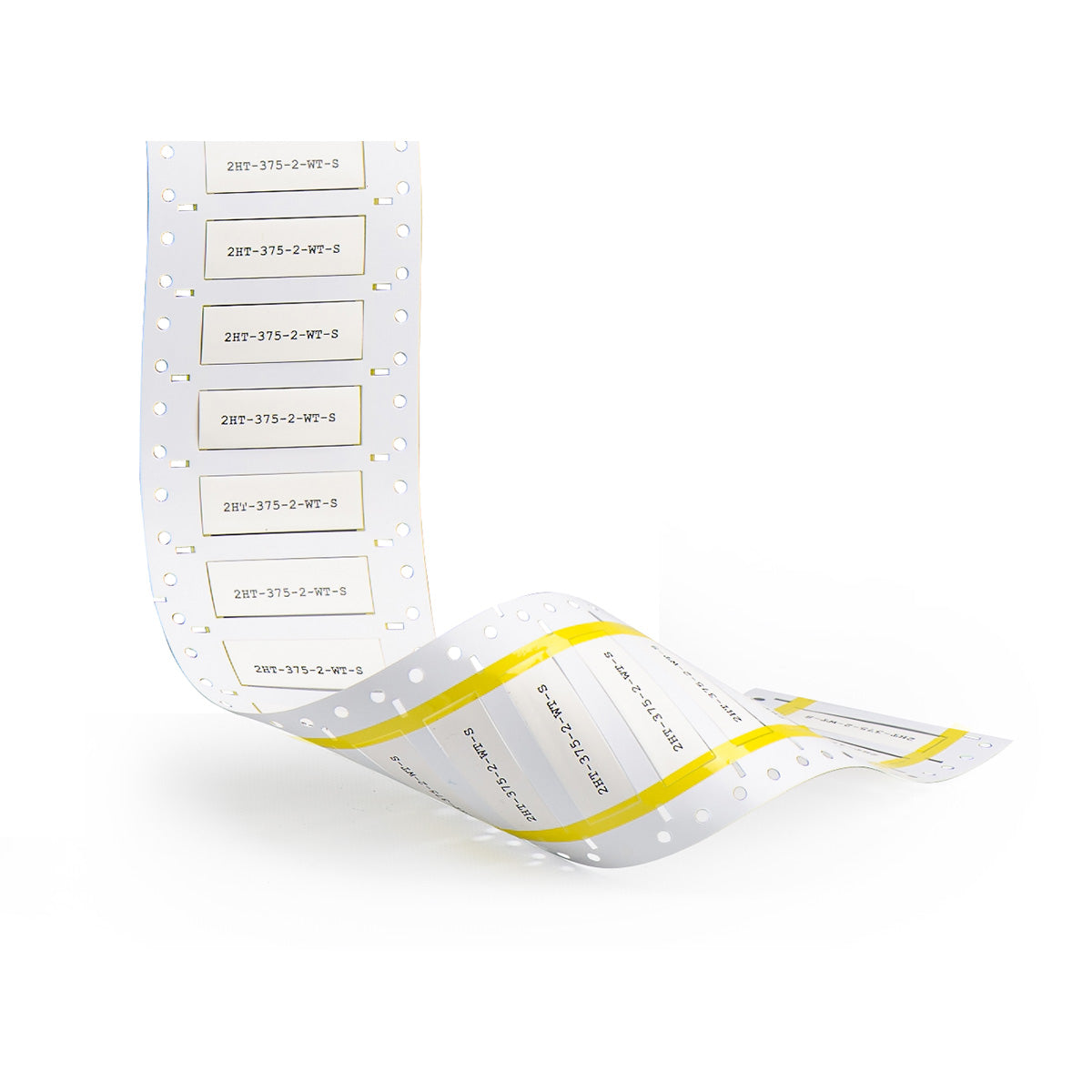

PermaSleeve Wire Marking Sleeves.

Specification

Article Number: 117120_2HX-1500-2-YL
Data-sheet: Download here

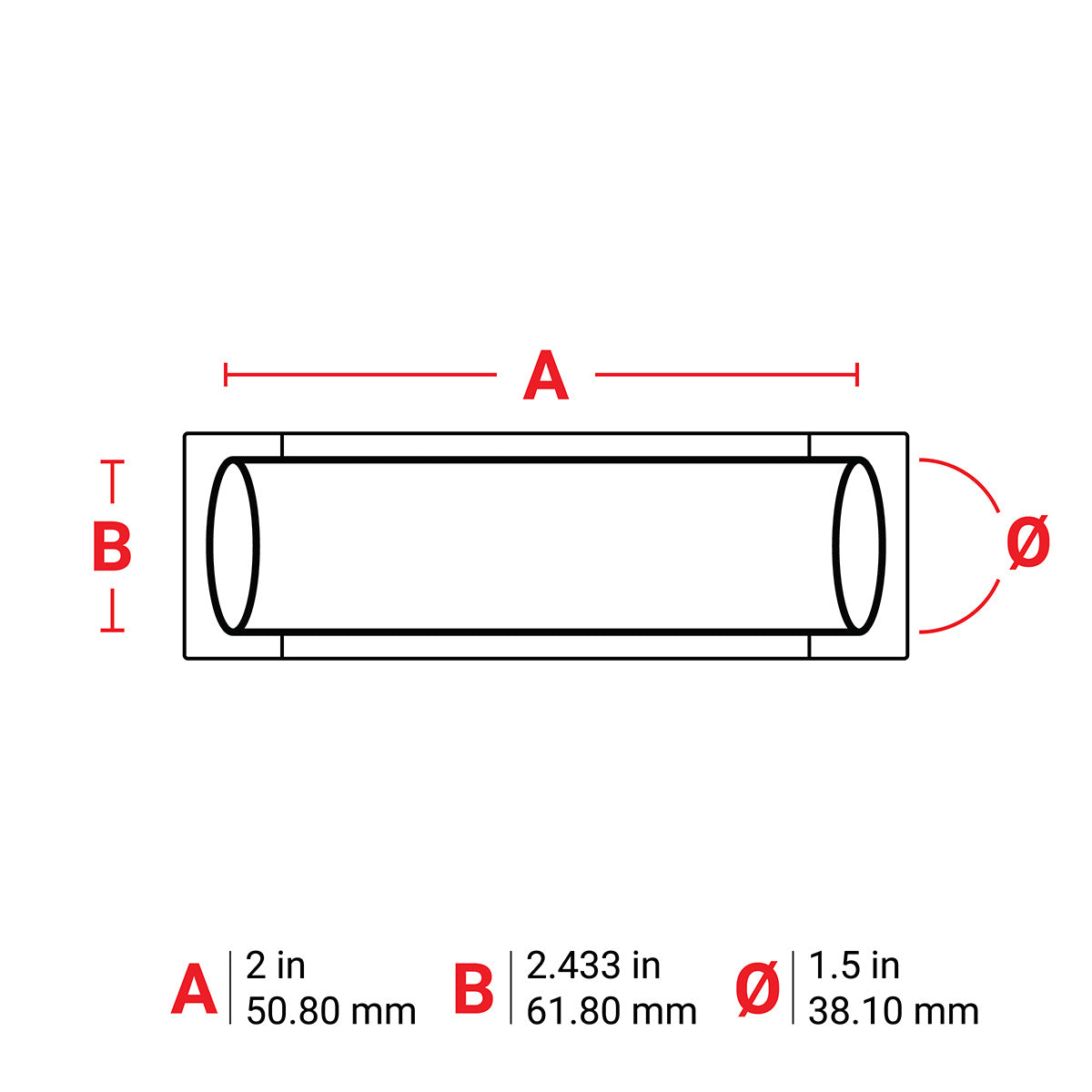

Height: 61.80 mm
Web Width: 88.65 mm
Width: 50.80 mm
Approval Compliance EMEA:
  • UL 224
  • SAE-AMS-DTL-23053/5 (Class 1 and 3)
  • SAE-AS-81531
  • MIL-STD-202 method 215K
  • Tested per ASTM E162
  • ASTM E662
Brady Material Number: B-7642
Finish:
  • Matt
Label Properties:
  • Heat Shrink
Material:
  • Heat-shrink Polyolefin
Material Properties:
  • Heat-shrinkable
Material Type:
  • Polyolefin
Maximum Service Temperature: 120 °C
Minimum Service Temperature: -40 °C
Ressistance Properties:
  • Chemical-resistant
  • Corrosion-resistant
  • Humidity-resistant
  • Self-extinguishing
  • UV-resistant
  • Weather-resistant
Applications:

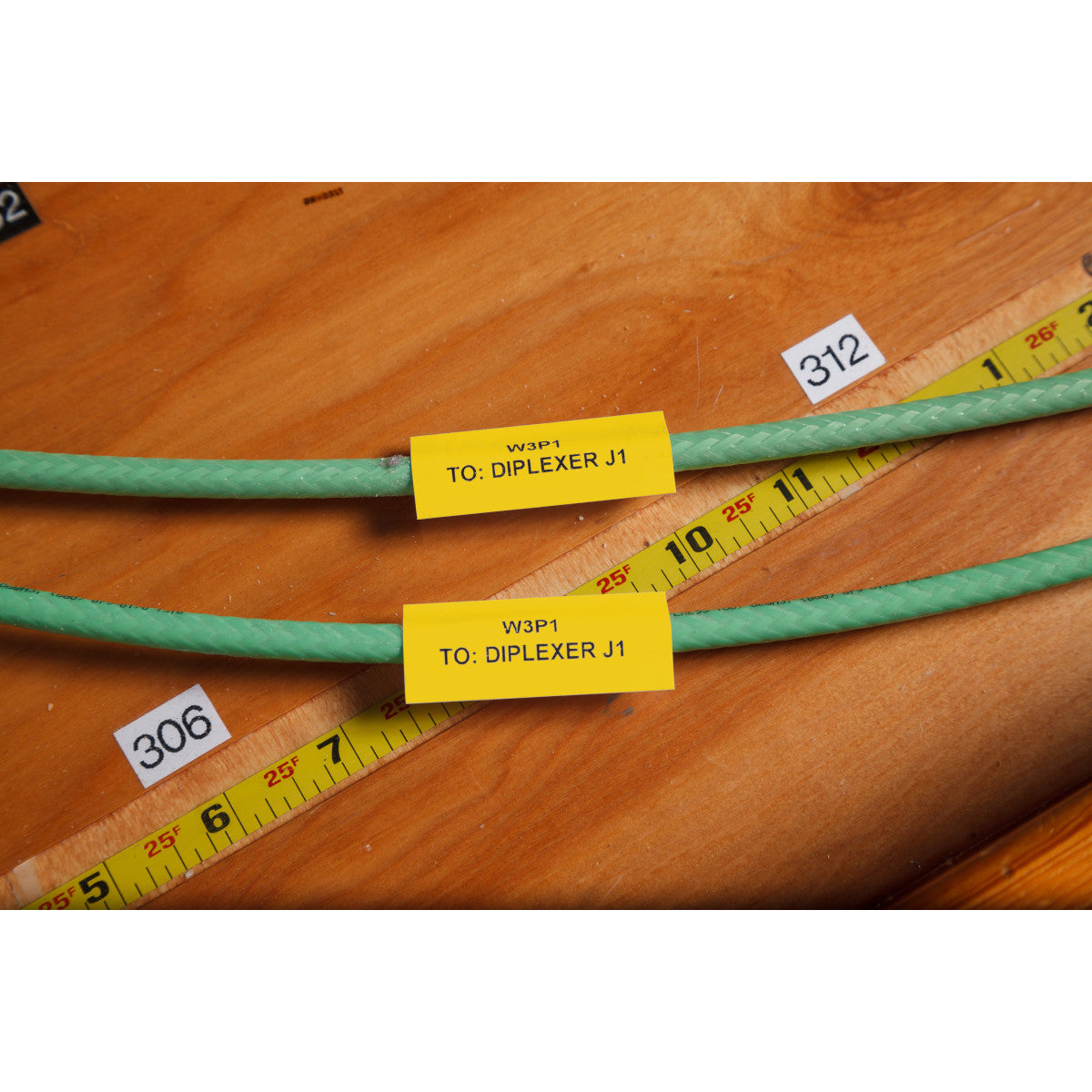

  • Electrical labelling
  • Wire and cable labelling
Colour:
  • Yellow
Continuous or Die-Cut: Die-cut
Print Technology:
  • Thermal Transfer

Printer & Label Applications:
  • Wire & Cable

Printer Compatibility:
  • BBP11
  • BBP12
  • BBP72
  • i7100
  • PR Plus
  • THT 76 mm Core Printers

Quantity Per Roll: 250
