Brady 2HX-750-2-WT PermaSleeve Wire Marking Sleeves 117135

Article Number: 117135_2HX-750-2-WT
Data-sheet: Download here

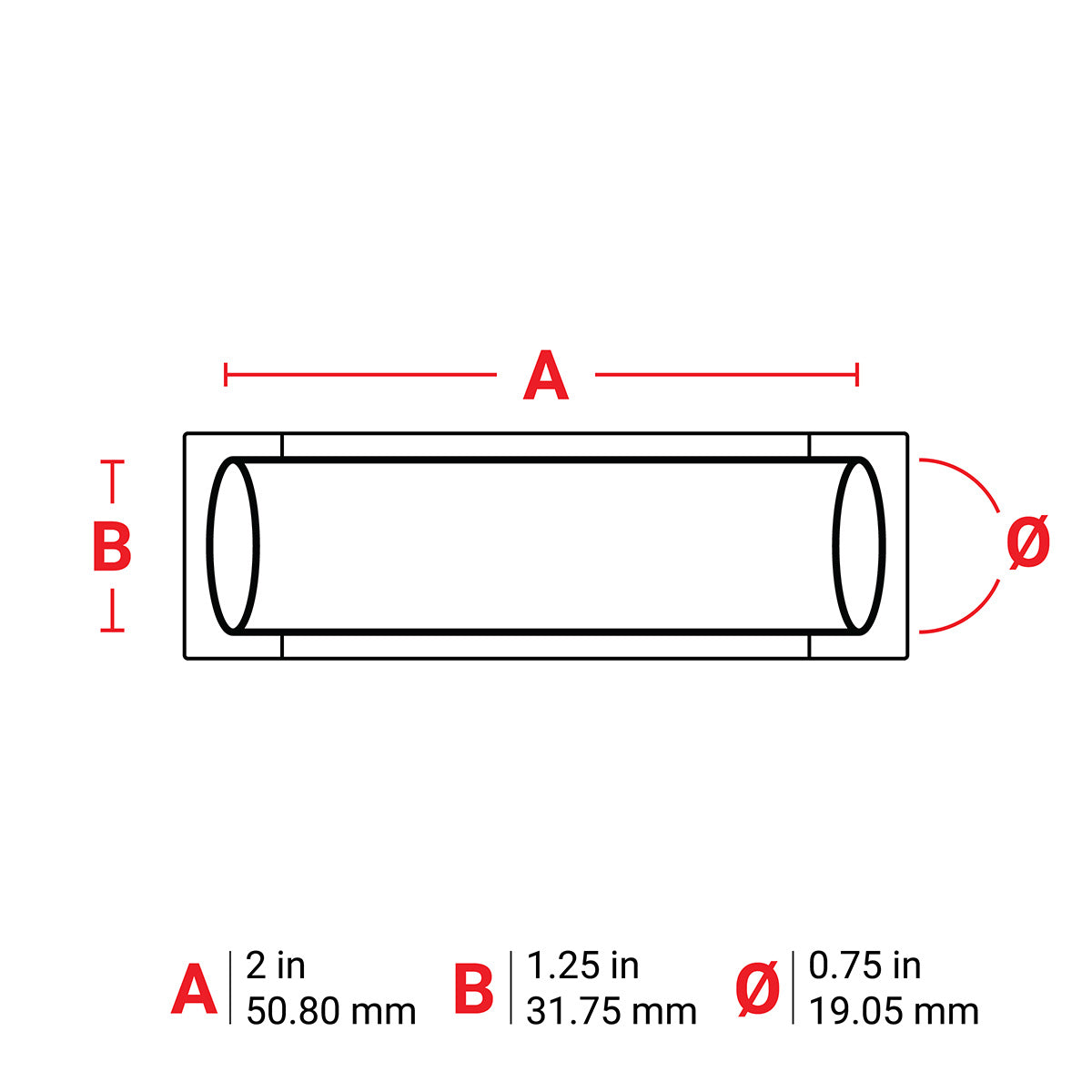

Height: 31.75 mm
Web Width: 88.65 mm
Width: 50.80 mm
Approval Compliance EMEA:

• UL 224
• SAE-AMS-DTL-23053/5 (Class 1 and 3)
• SAE-AS-81531
• MIL-STD-202 method 215K
• Tested per ASTM E162
• ASTM E662

Brady Material Number: B-7642
Finish:

• Matt

Label Properties:

• Heat Shrink

Material:

• Heat-shrink Polyolefin

Material Properties:

• Heat-shrinkable

Material Type:

• Polyolefin

Maximum Service Temperature: 120 °C
Minimum Service Temperature: -40 °C
Ressistance Properties:

• Chemical-resistant
• Corrosion-resistant
• Humidity-resistant
• Self-extinguishing
• UV-resistant
• Weather-resistant

Applications:

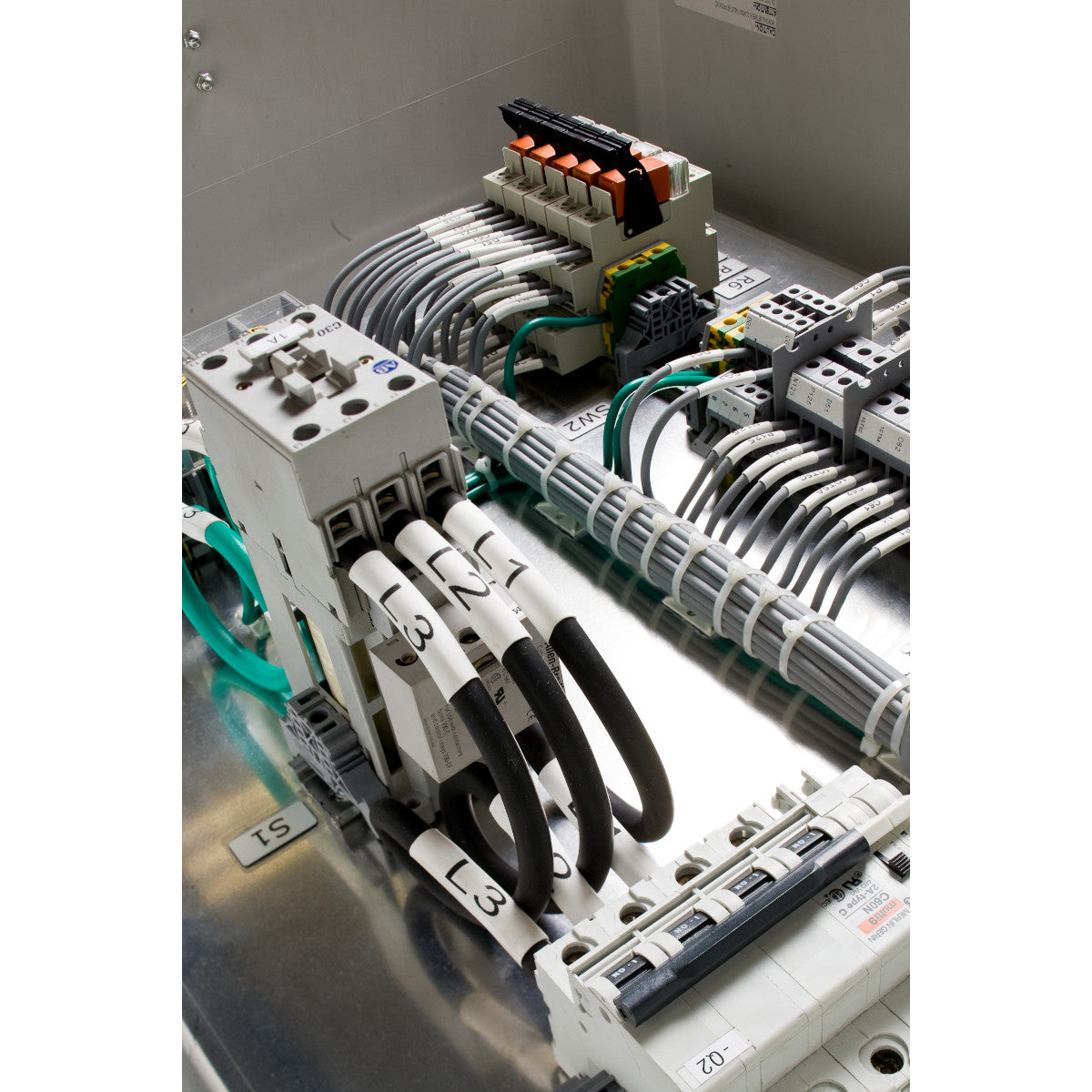

• Electrical labelling
• Wire and cable labelling

Colour:

• White

Continuous or Die-Cut: Die-cut
Print Technology:

• Thermal Transfer

Printer & Label Applications:

• Wire & Cable

Printer Compatibility:

• BBP11
• BBP12
• BBP72
• i7100
• PR Plus
• THT 76 mm Core Printers

Quantity Per Roll: 250
