Description

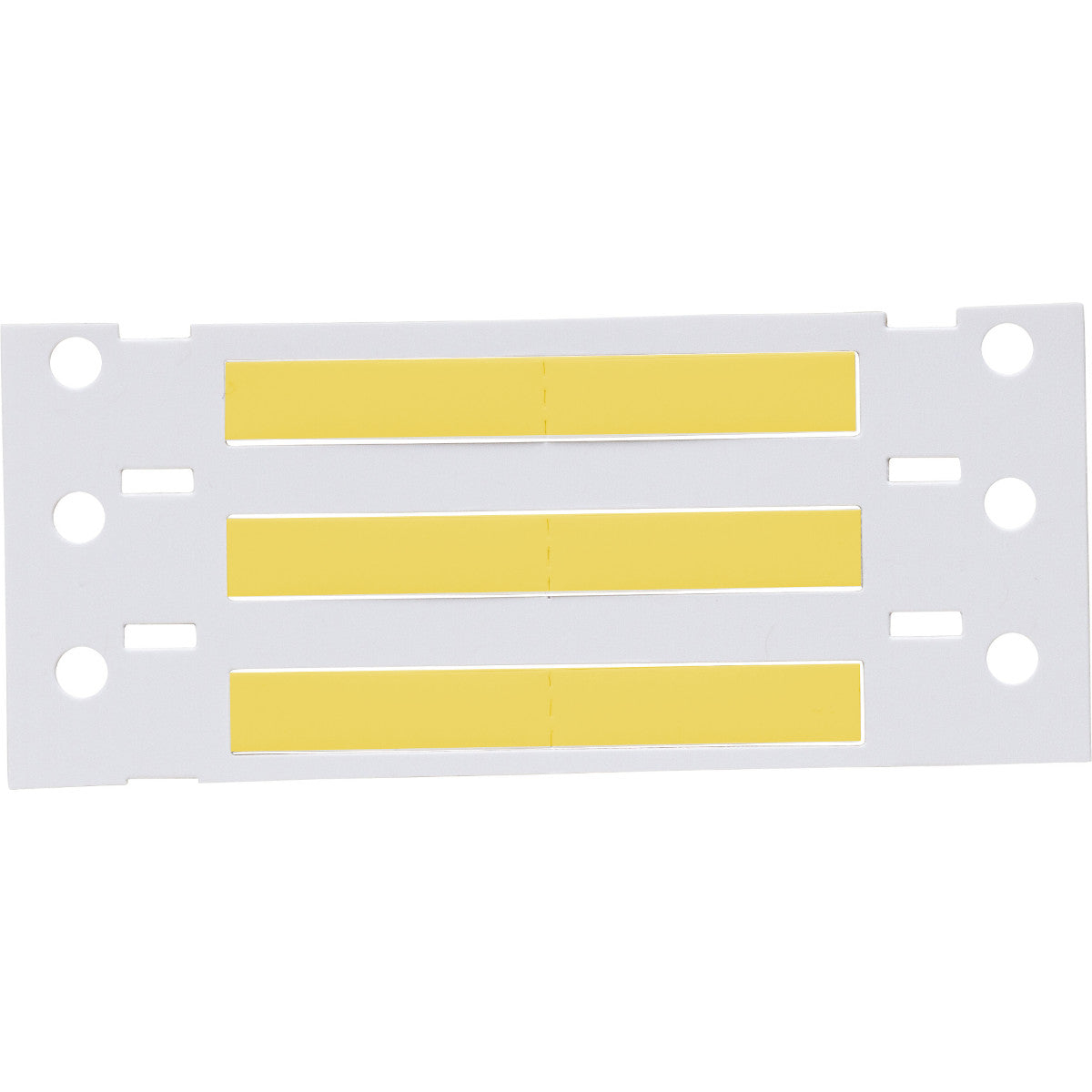

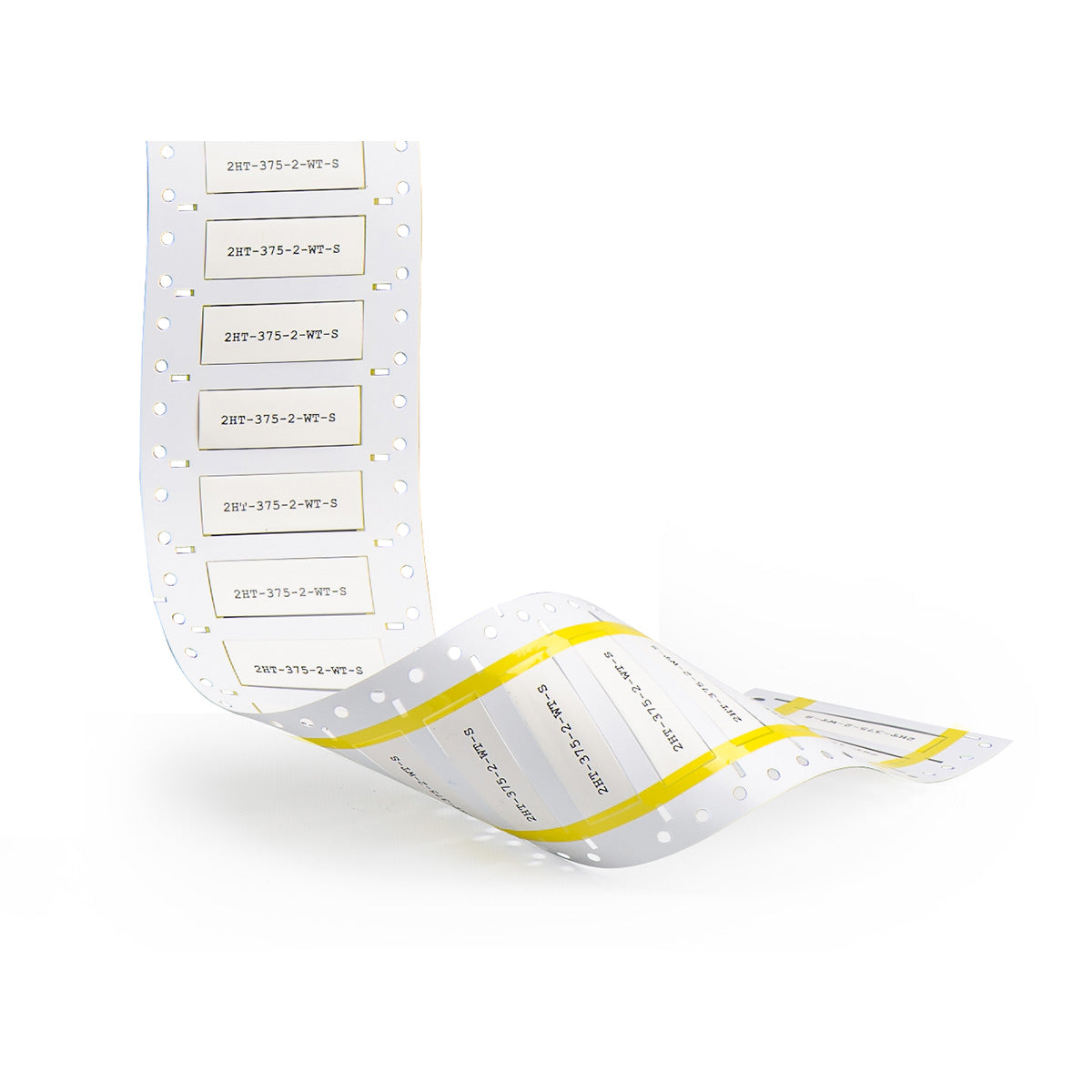

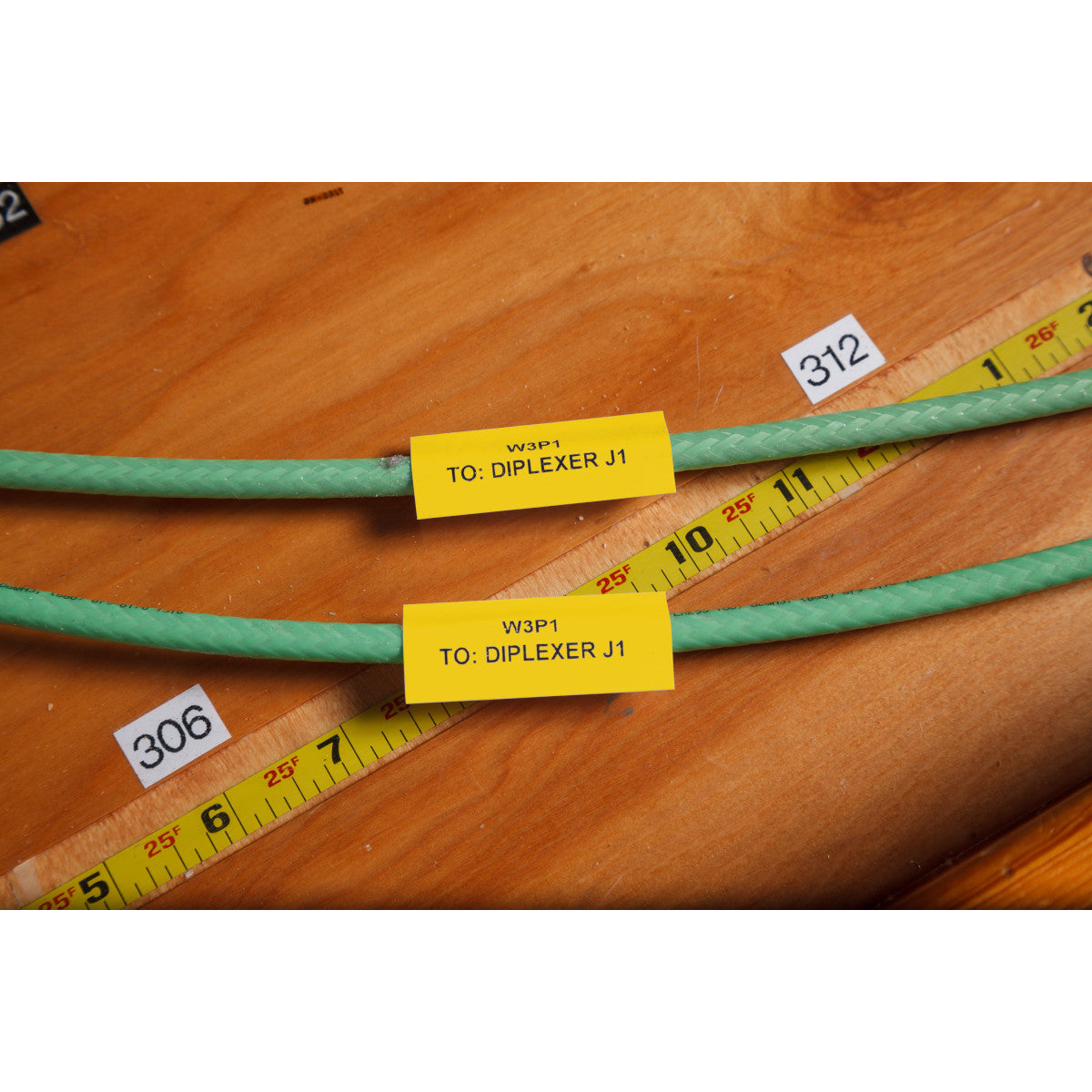

Diesel Resistant Sleeves. Brady's DIESEL resistant heat shrinkable sleeves fit snugly around wires for maximum insulation protection and permanent identification. The B-7646 sleeves are resistant to organic fluids,
common fuels, lubricants and solvents and have a 3:1 shrink ratio. These full-circle insulating sleeves meet the rigid insulating material requirements and physical properties of NF F 00-608 type A and H norm, SAE AS-81531 (mark permanence) and MIL-STD-202 method 215K (solvent resistance) when printed with R-6600 series thermal transfer ribbons. B-7646 sleeves will not fade or smudge and can be used with Brady's Thermal Transfer Printers.
Specification
Article Number: 621992_3:1DPS-3.2x50-B7646-YL-2S
Data-sheet: Download here

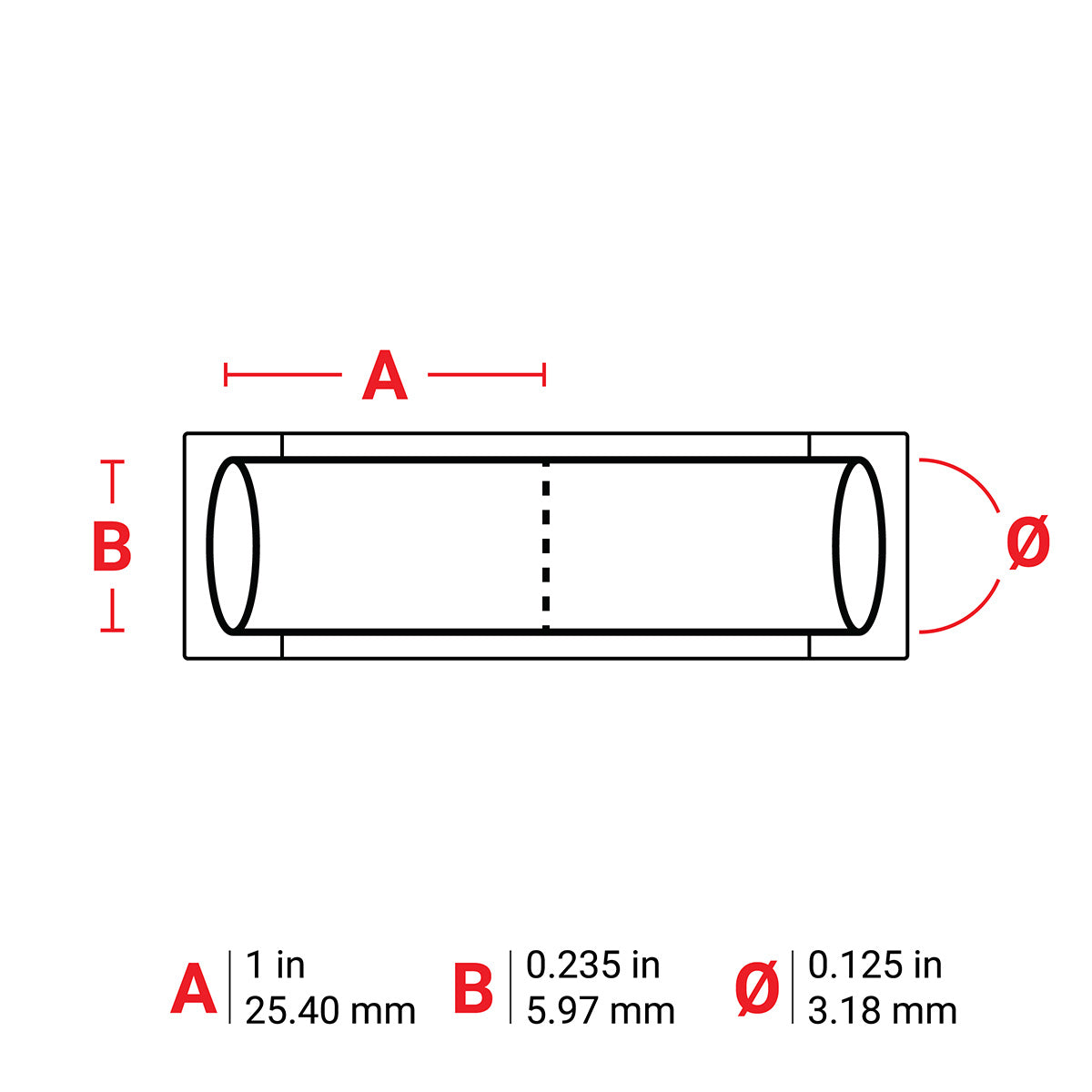

Height: 5.97 mm
Thickness: 0.521 mm
Web Width: 88.65 mm
Width: 25.40 mm
Approval Compliance EMEA: Brady Material Number: B-7646
Finish: Label Properties: Material: Material Properties: Material Type: Maximum Service Temperature: 135 °C
Minimum Service Temperature: -55 °C
Ressistance Properties: Applications: Colour: Continuous or Die-Cut: Die-cut
Print Technology:
Printer & Label Applications:
Printer Compatibility:
Quantity Per Roll: 5000
Special Properties:
Data-sheet: Download here
Height: 5.97 mm
Thickness: 0.521 mm
Web Width: 88.65 mm
Width: 25.40 mm
Approval Compliance EMEA: Brady Material Number: B-7646
Finish: Label Properties: Material: Material Properties: Material Type: Maximum Service Temperature: 135 °C
Minimum Service Temperature: -55 °C
Ressistance Properties: Applications: Colour: Continuous or Die-Cut: Die-cut
Print Technology:
Printer & Label Applications:
Printer Compatibility:
Quantity Per Roll: 5000
Special Properties:
