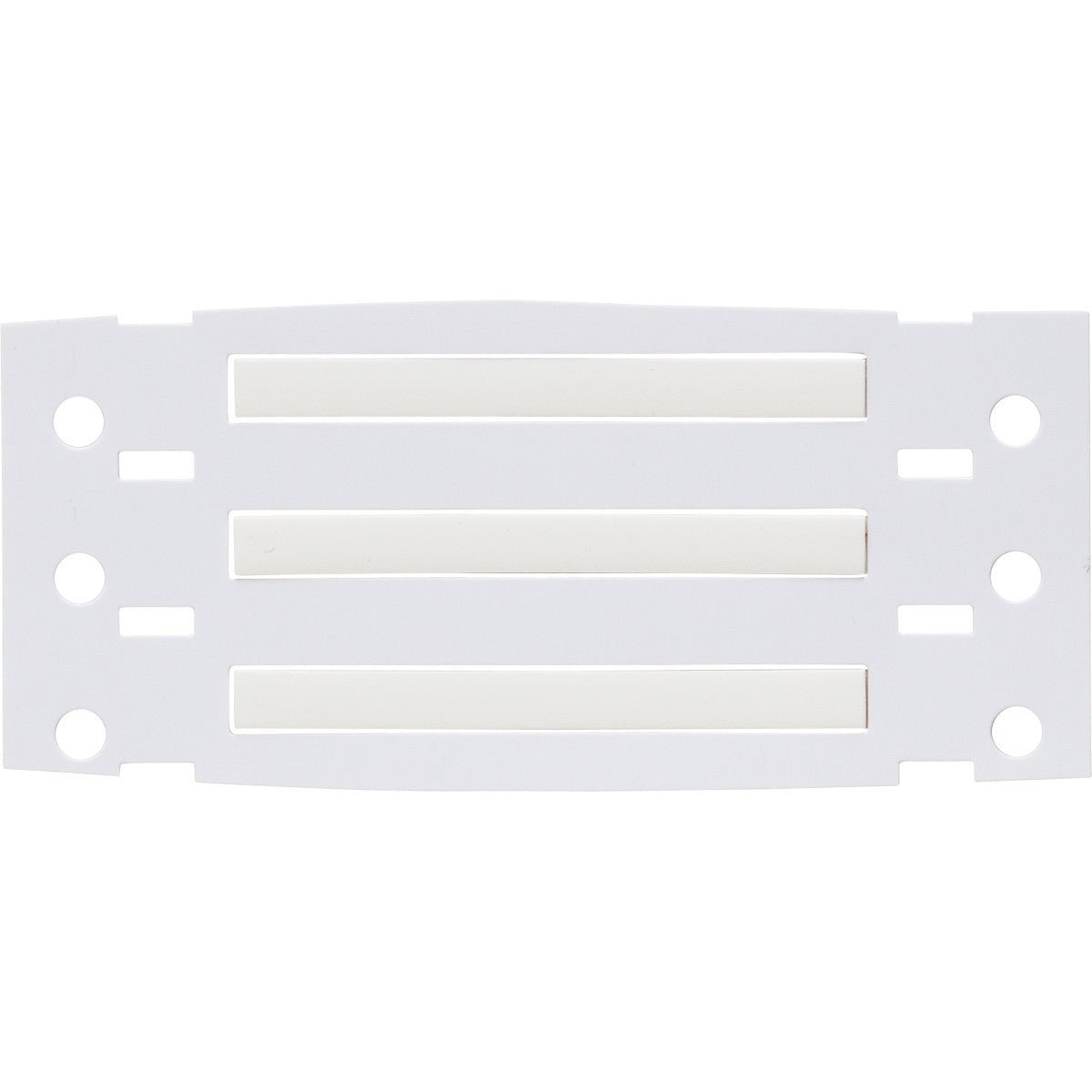

Brady 3PS-094-2-WT-SC PermaSleeve Wire Marking Sleeves 114235


Price:
Sale price
£9,999.00

Description

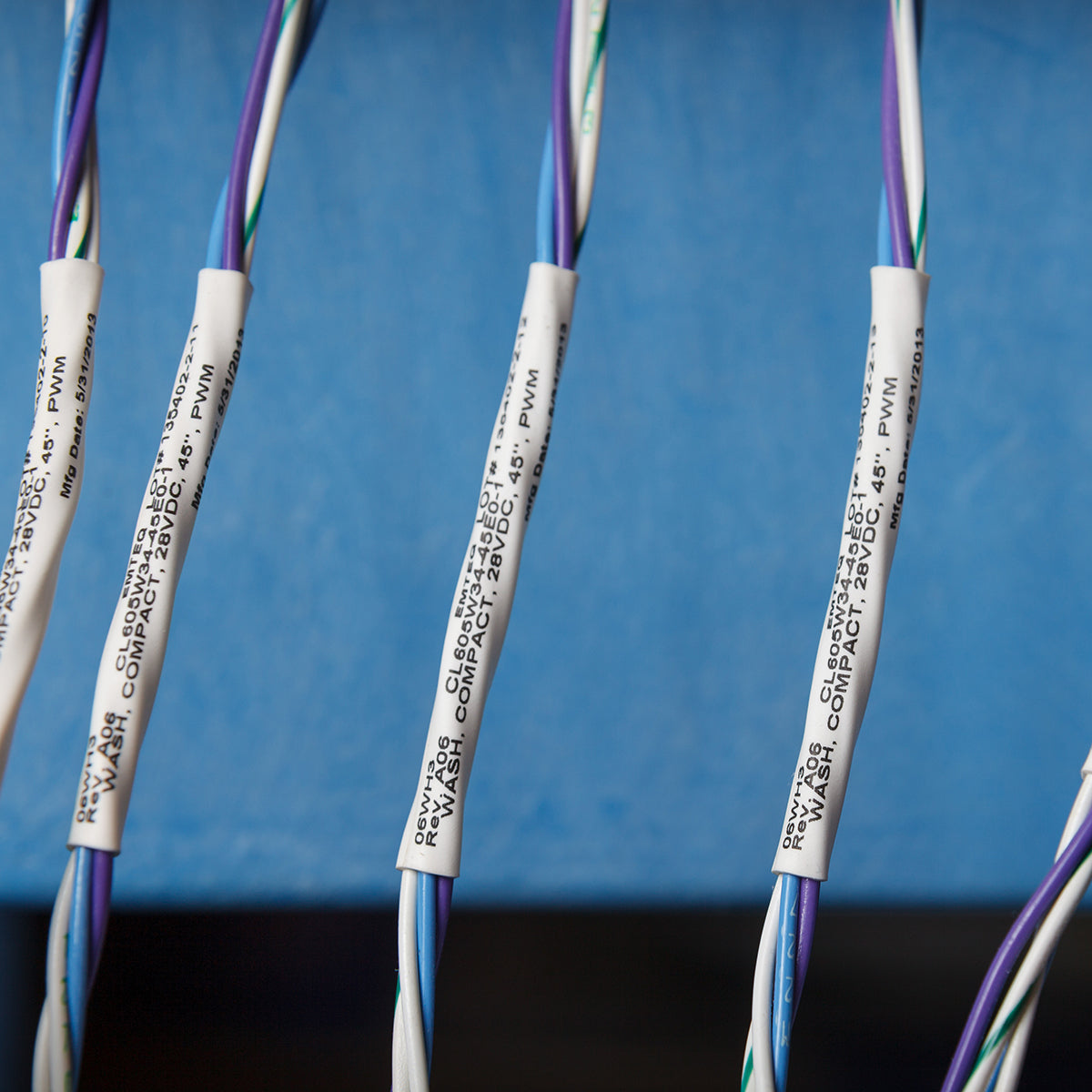

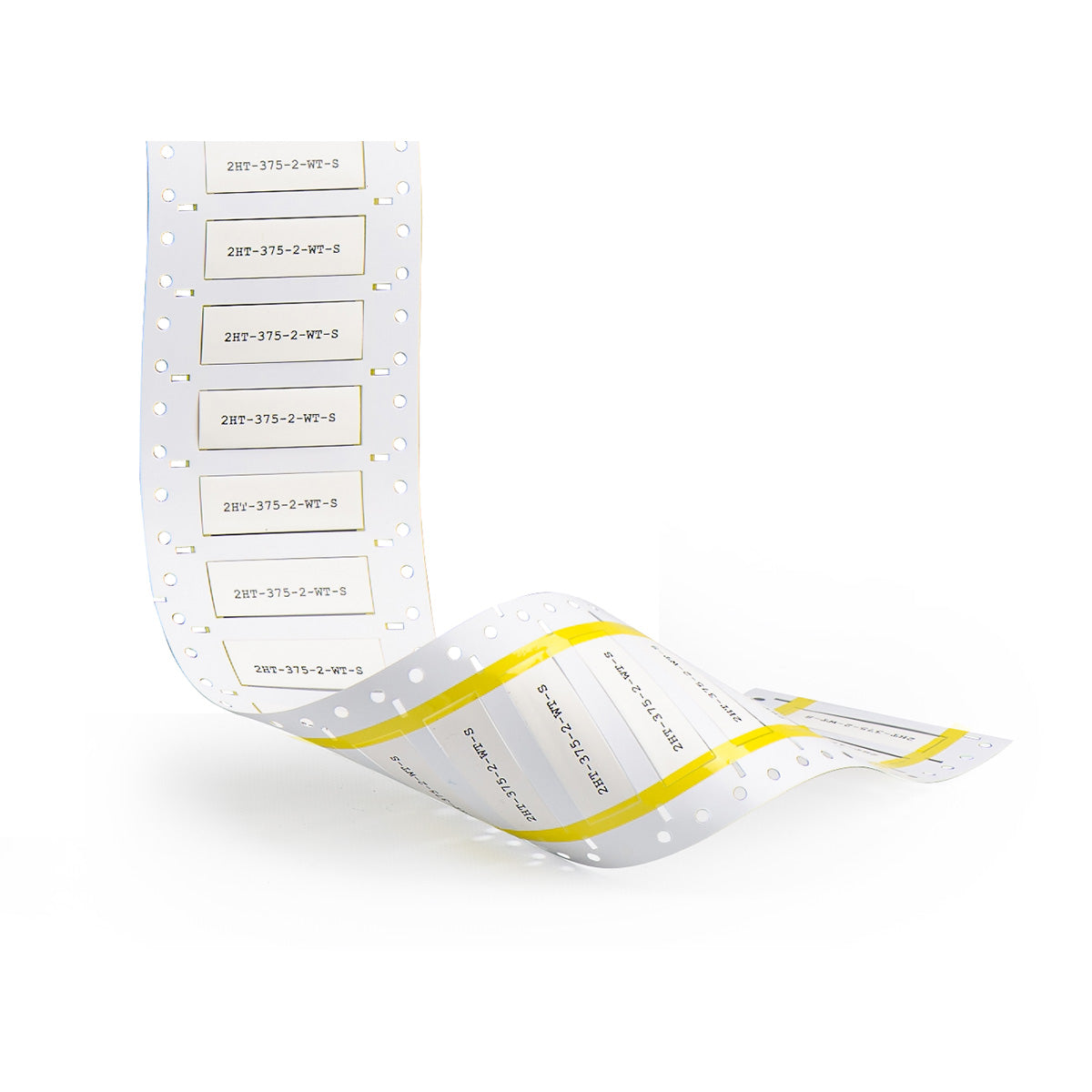

PermaSleeve Wire Marking Sleeves. Brady's PermaSleeve™ heat shrinkable sleeves fit snugly around wires for maximum insulation protection and permanent identification. The full-circle insulating sleeves meet the rigid insulating material requirements and physical properties of MIL-DTL-23053/5 Class 1, MIL-M-81531, MIL-STD-202F, METHOD 215, and UL224 when printed with R5000 dot matrix and R4300 and R4502S (for black sleeves only) thermal transfer ribbons. These fade resistant, smudge-proof sleeves can be used with Brady's Sleeve & Datab™ Printers, as well as Thermal Transfer printers.

Specification

Article Number: 114235_3PS-094-2-WT-SC
Data-sheet: Download here

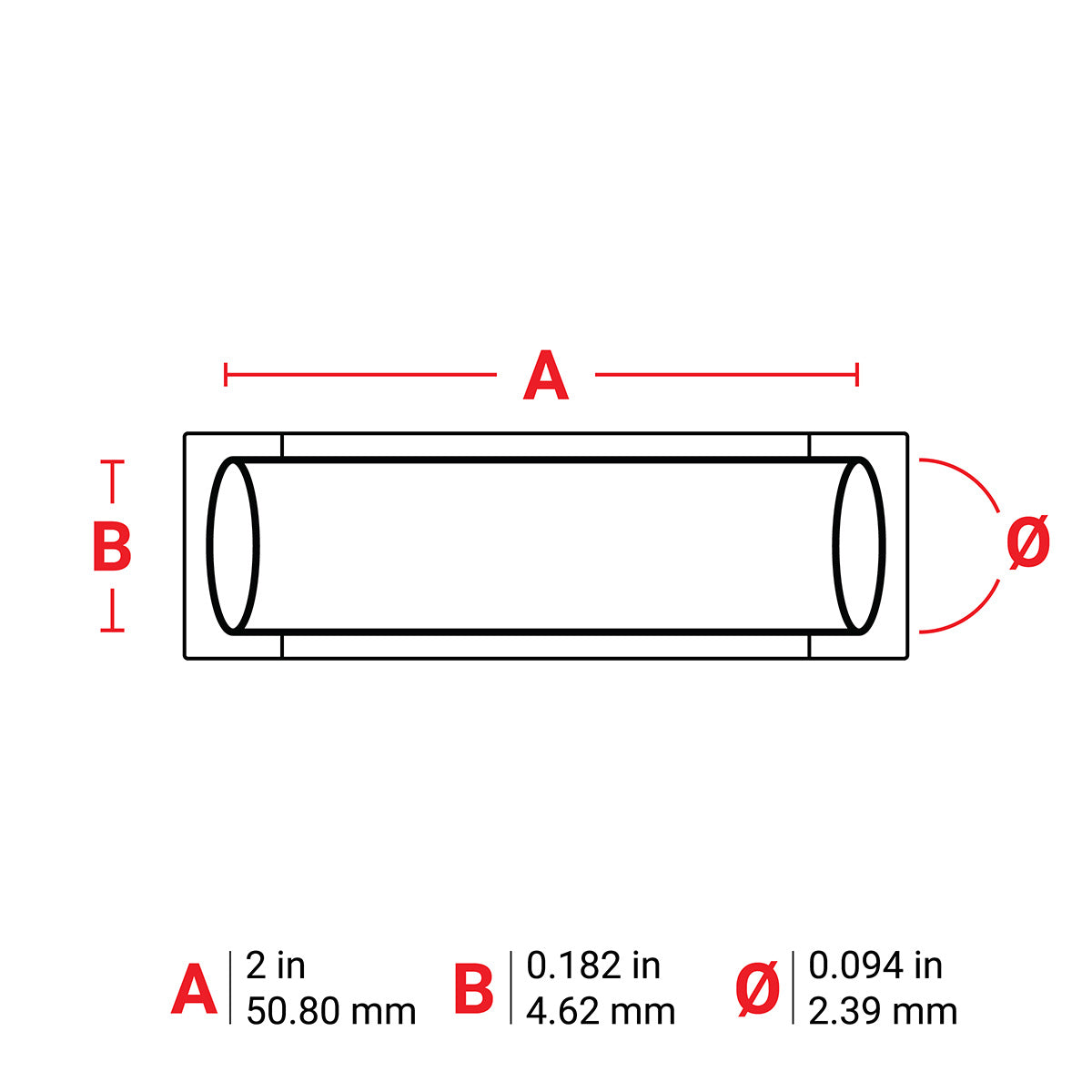

Height: 4.62 mm
Web Width: 88.65 mm
Width: 50.80 mm
Approval Compliance EMEA:
  • UL Recognised to UL224
  • SAE-AMS-DTL-23053/5 C (Class 1)
  • SAE-AS-81531
Brady Material Number: B-342
Finish:
  • Matt
Label Properties:
  • Heat Shrink
Material:
  • Heat-shrink Polyolefin
Material Properties:
  • Flame-retardant
  • Heat-shrinkable
Material Type:
  • Polyolefin
Maximum Service Temperature: 135 °C
Minimum Service Temperature: -55 °C
Ressistance Properties:
  • Chemical-resistant
  • Corrosion-resistant
  • Humidity-resistant
  • Smear-resistant
  • UV-resistant
  • Weather-resistant
Applications:

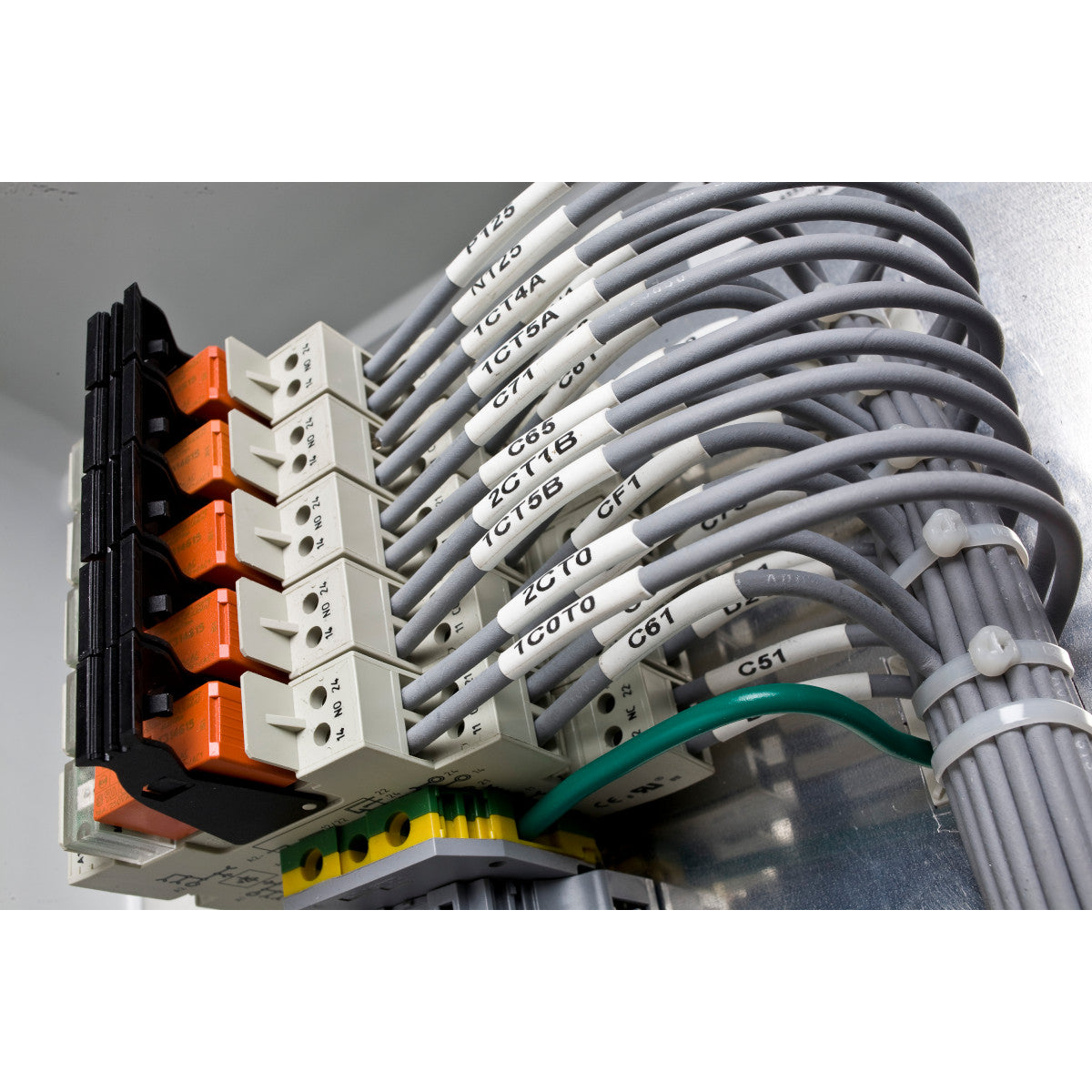

  • Wire and cable labelling
Colour:
  • White
Continuous or Die-Cut: Die-cut
Print Technology:
  • Thermal Transfer

Printer & Label Applications:
  • Wire & Cable

Printer Compatibility:
  • BBP11
  • BBP12
  • THT 25 mm Core Printers

Quantity Per Roll: 1000
Special Properties:
  • Supplied on 25.4mm diam cores
