Description

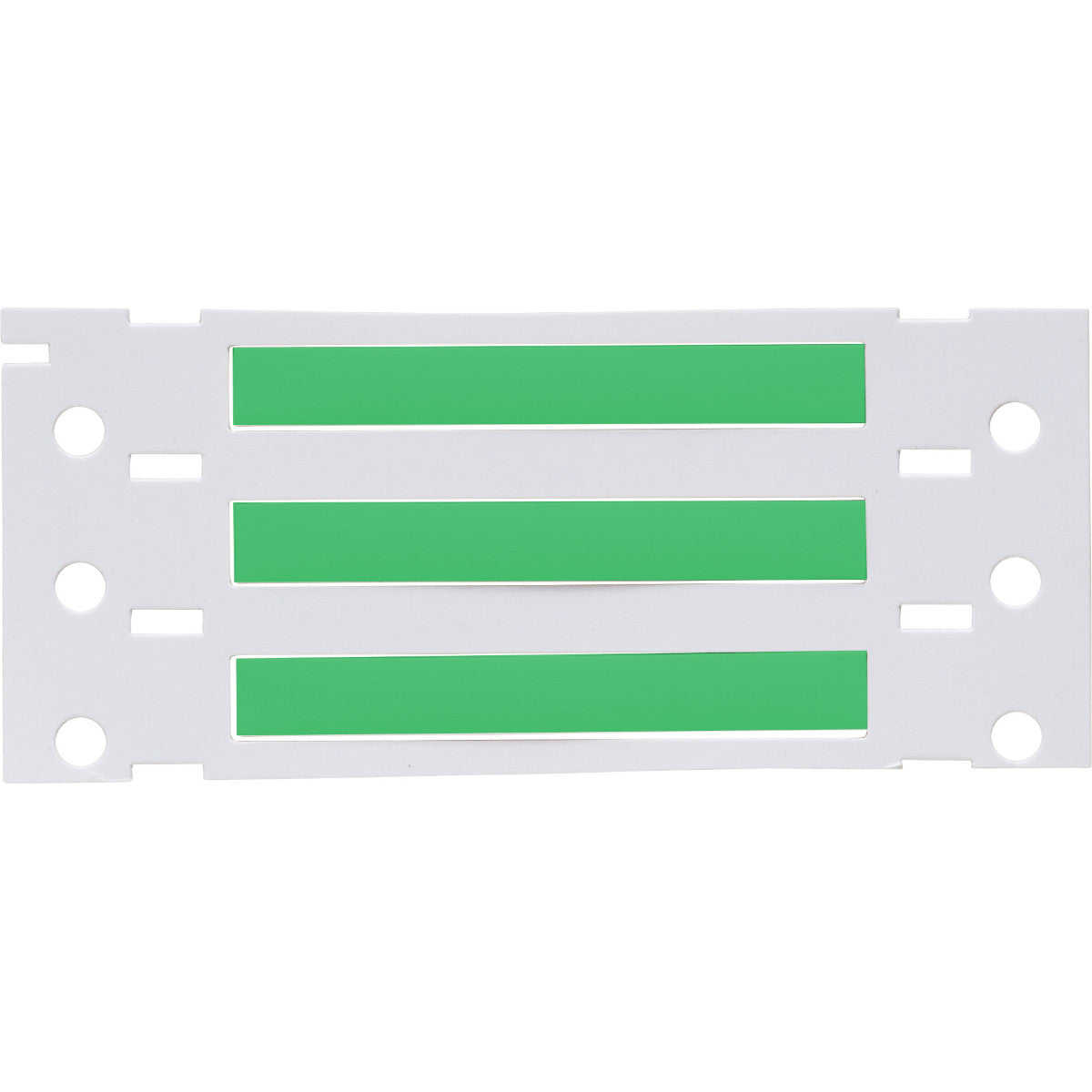

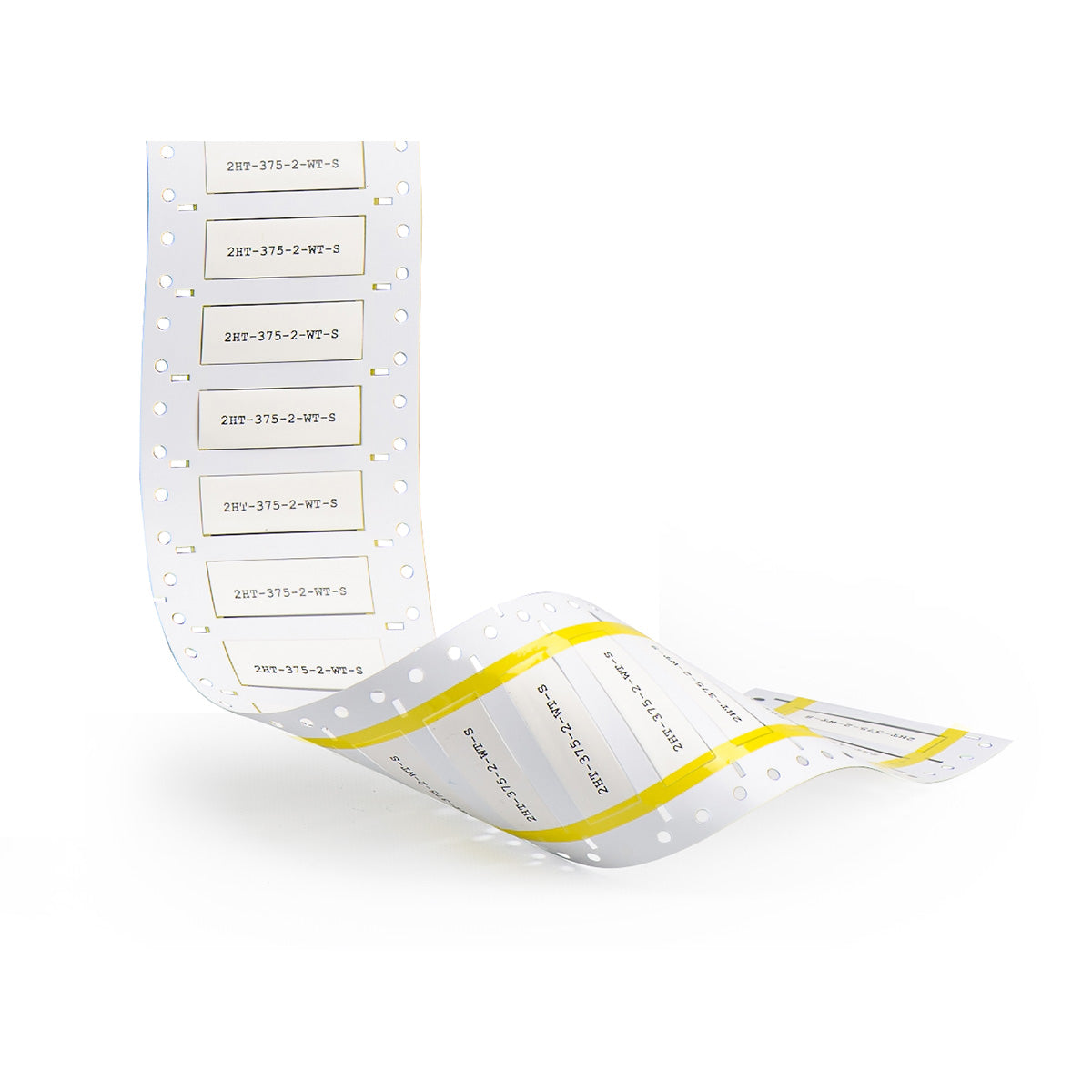

PermaSleeve Wire Marking Sleeves. Brady's PermaSleeve™ heat shrinkable sleeves fit snugly around wires for maximum insulation protection and permanent identification. The full-circle insulating sleeves meet the rigid insulating material requirements and physical properties of MIL-DTL-23053/5 Class 1, MIL-M-81531, MIL-STD-202F, METHOD 215, and UL224 when printed with R5000 dot matrix and R4300 and R4502S (for black sleeves only) thermal transfer ribbons. These fade resistant, smudge-proof sleeves can be used with Brady's Sleeve & Datab™ Printers, as well as Thermal Transfer printers.
Specification
Article Number: 622349_3PS-125-2-GR
Data-sheet: Download here

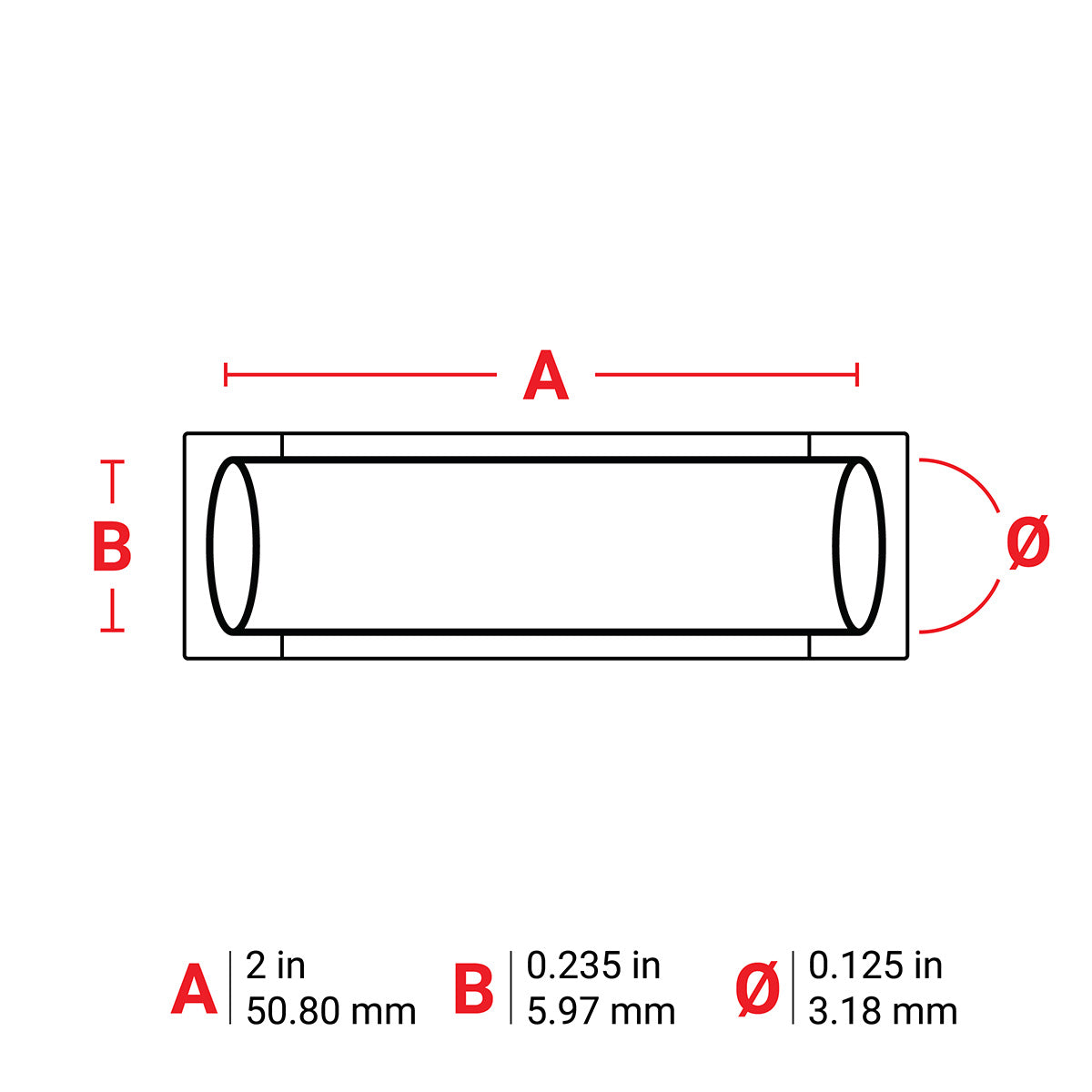

Height: 5.97 mm
Web Width: 88.65 mm
Width: 50.80 mm
Approval Compliance EMEA: Brady Material Number: B-342
Finish: Label Properties: Material: Material Properties: Material Type: Maximum Service Temperature: 135 °C
Minimum Service Temperature: -55 °C
Ressistance Properties: Applications: Colour: Continuous or Die-Cut: Die-cut
Print Technology:
Printer & Label Applications:
Printer Compatibility:
Quantity Per Roll: 2500
