Brady 3PS-375-2-OR PermaSleeve Wire Marking Sleeves 130194


Price:
Sale price£880.20

Description

PermaSleeve Wire Marking Sleeves. Brady's PermaSleeve™ heat shrinkable sleeves fit snugly around wires for maximum insulation protection and permanent identification. The full-circle insulating sleeves meet the rigid insulating material requirements and physical properties of MIL-DTL-23053/5 Class 1, MIL-M-81531, MIL-STD-202F, METHOD 215, and UL224 when printed with R5000 dot matrix and R4300 and R4502S (for black sleeves only) thermal transfer ribbons. These fade resistant, smudge-proof sleeves can be used with Brady's Sleeve & Datab™ Printers, as well as Thermal Transfer printers.

Specification

Article Number: 130194_3PS-375-2-OR
Data-sheet: Download here

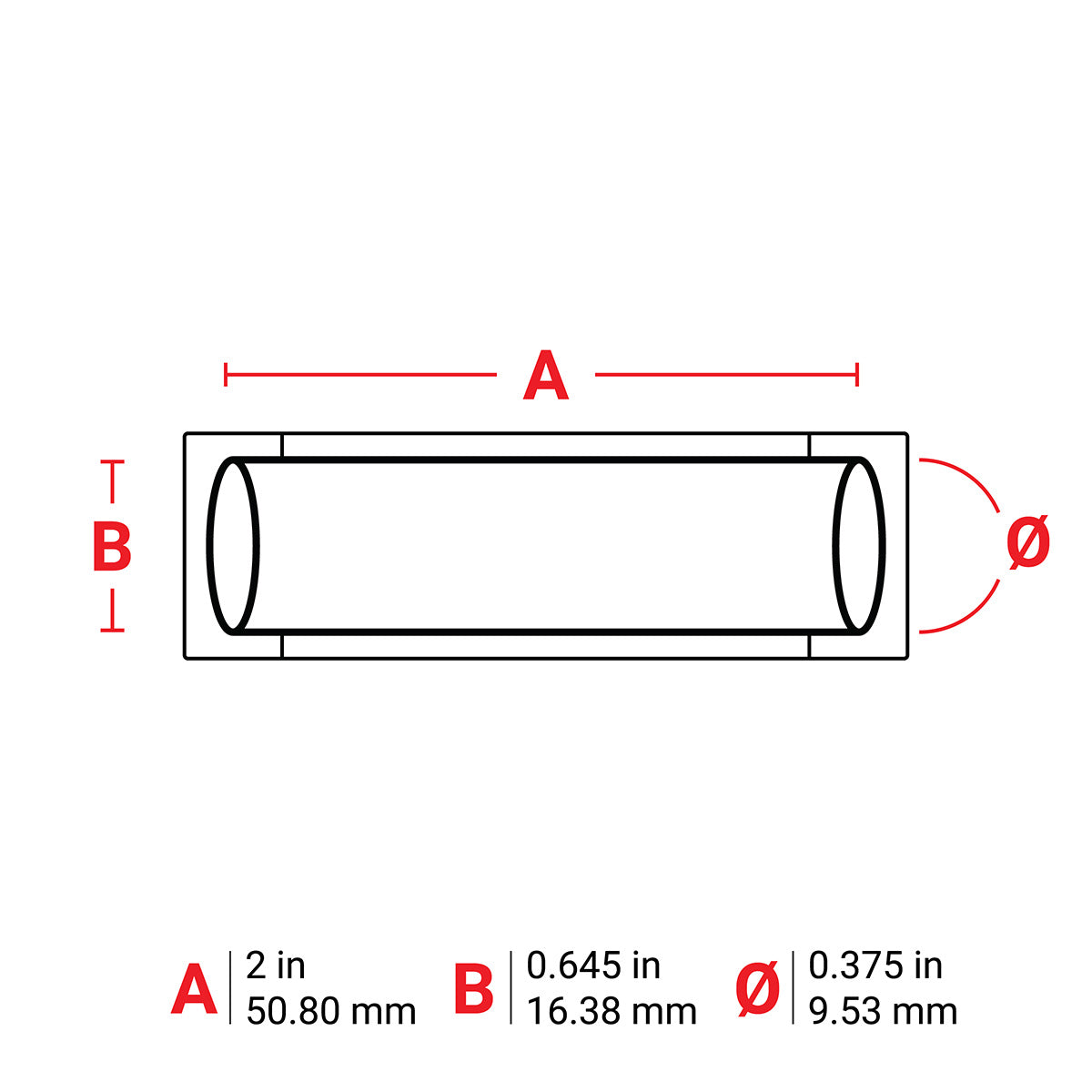

Height: 16.38 mm
Web Width: 88.65 mm
Width: 50.80 mm
Approval Compliance EMEA:
  • UL Recognised to UL224
  • SAE-AMS-DTL-23053/5 C (Class 1)
  • SAE-AS-81531
Brady Material Number: B-342
Finish:
  • Matt
Label Properties:
  • Heat Shrink
Material:
  • Heat-shrink Polyolefin
Material Properties:
  • Flame-retardant
  • Heat-shrinkable
Material Type:
  • Polyolefin
Maximum Service Temperature: 135 °C
Minimum Service Temperature: -55 °C
Ressistance Properties:
  • Chemical-resistant
  • Corrosion-resistant
  • Humidity-resistant
  • Smear-resistant
  • UV-resistant
  • Weather-resistant
Applications:
  • Wire and cable labelling
Colour:
  • Orange
Continuous or Die-Cut: Die-cut
Print Technology:
  • Thermal Transfer
Printer & Label Applications:
  • Wire & Cable
Printer Compatibility:
  • BBP72
  • i5100
  • i7100
  • PR Plus
  • IP Series
  • THT 76 mm Core Printers
Quantity Per Roll: 1000
