Description

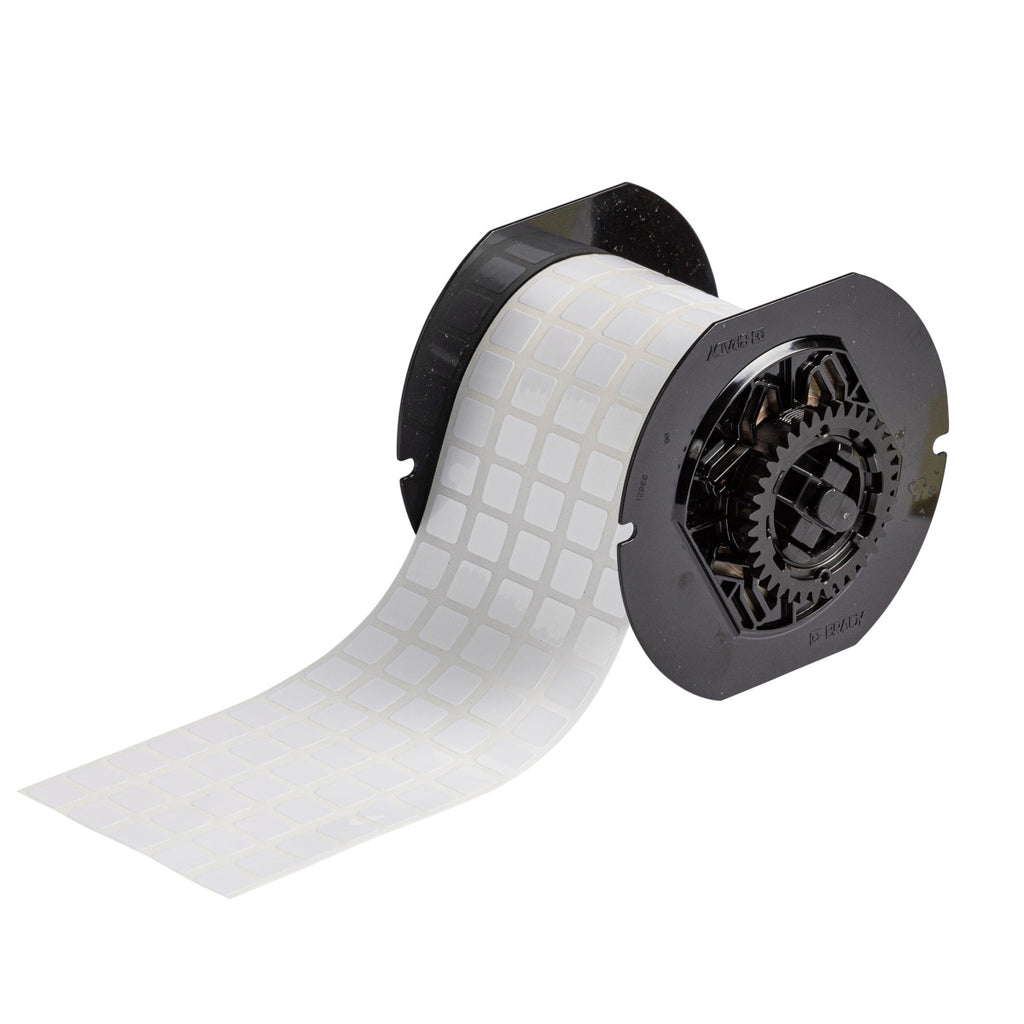

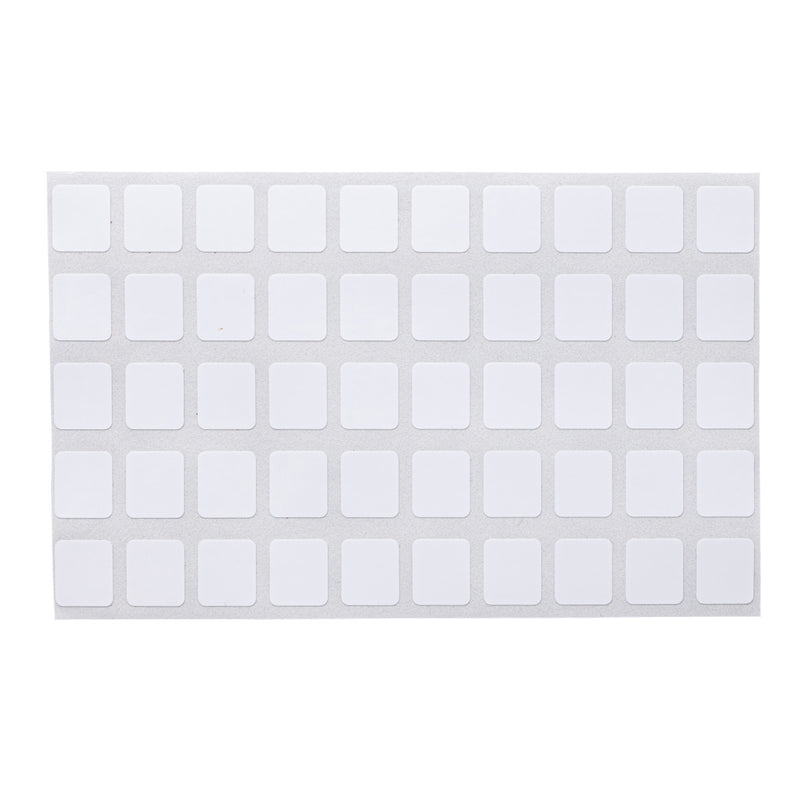

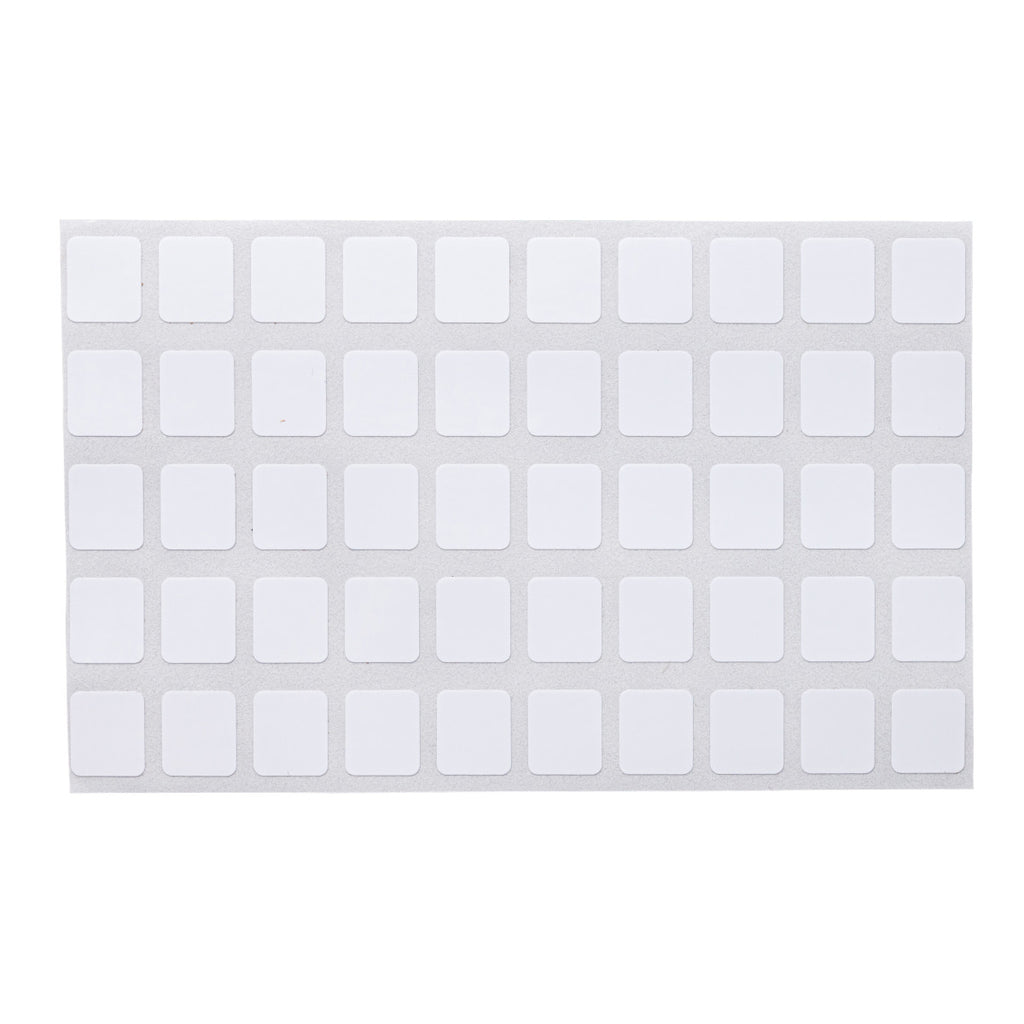

B33 Series Glossy White Polyimide Non-Reflow Circuit Board Labels Does not require reflow or preheating to ensure printing readability. Ideal for boards that go through multiple harsh-condition washes. When used with B30-R6300 ribbon, B-777 is UL / CSA recognized and meets MIL-STD-202G, Method 215K Resistance to Solvents test requirements--consult TDS for details. B30-R6000 ribbon is acceptable for general-purpose imaging on this material
Specification
Article Number: 153290_B33-12-777
Data-sheet: Download here

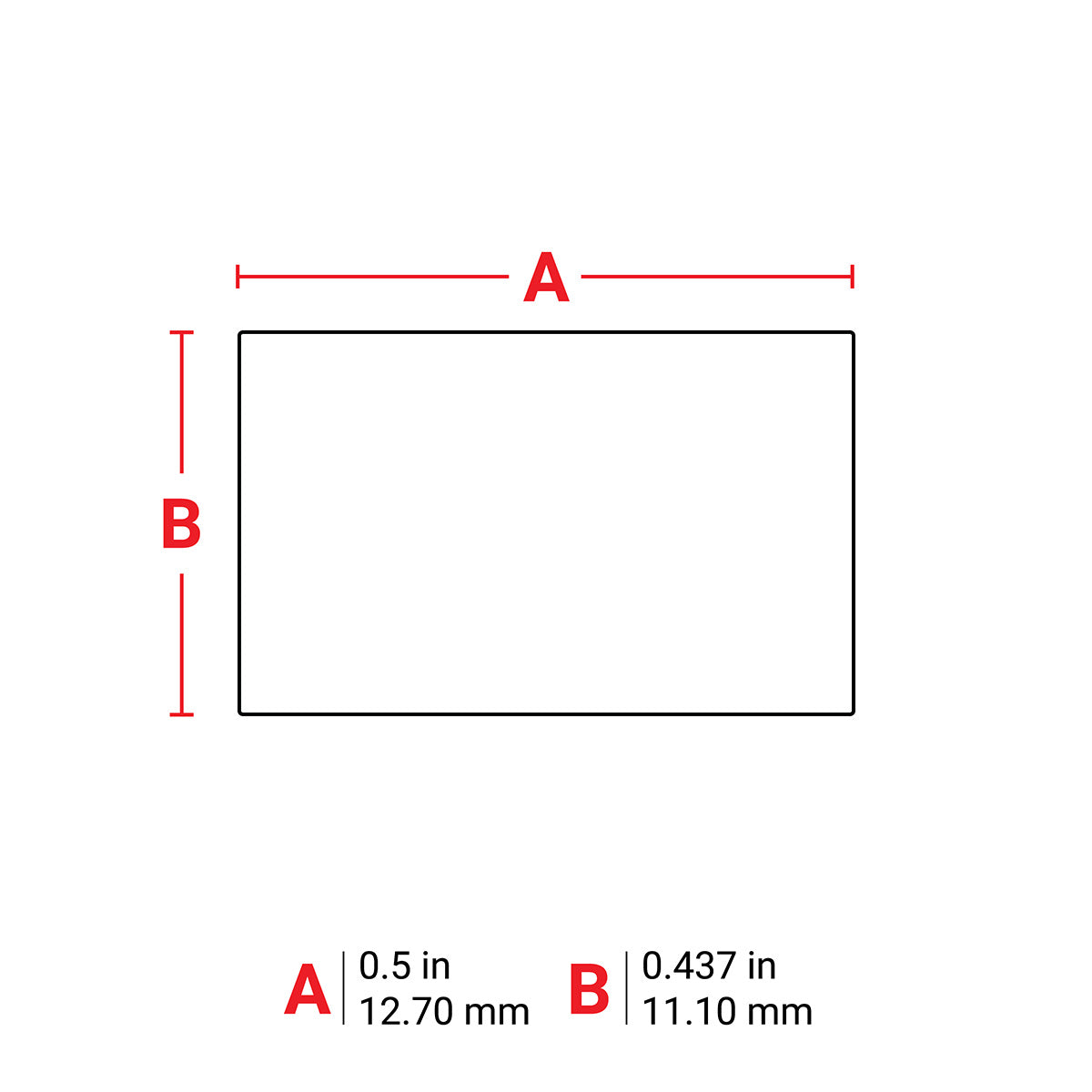

Height: 11.10 mm
Thickness: 0.1041 mm
Web Width: 85.09 mm
Width: 12.70 mm
Adhesive Type: ["Permanent Acrylic"]
Brady Material Number: B-777
Finish: Indoor or Outdoor Use: Label Properties: Material: Material Type: Maximum Service Temperature: 300 °C
Minimum Service Temperature: -70 °C
Ressistance Properties: Applications: Colour: Continuous or Die-Cut: Die-cut
Print Technology:
Printer & Label Applications:
Printer Compatibility:
Quantity Per Roll: 10000
Shape: Rectangle
Data-sheet: Download here
Height: 11.10 mm
Thickness: 0.1041 mm
Web Width: 85.09 mm
Width: 12.70 mm
Adhesive Type: ["Permanent Acrylic"]
Brady Material Number: B-777
Finish: Indoor or Outdoor Use: Label Properties: Material: Material Type: Maximum Service Temperature: 300 °C
Minimum Service Temperature: -70 °C
Ressistance Properties: Applications: Colour: Continuous or Die-Cut: Die-cut
Print Technology:
Printer & Label Applications:
Printer Compatibility:
Quantity Per Roll: 10000
Shape: Rectangle
