Brady HX-094-2-WT-SC PermaSleeve Wire Marking Sleeves 117341

Sale price£241.05


PermaSleeve Wire Marking Sleeves. Brady's PermaSleeve™ HX heat shrinkable shrinkable wire marking sleeves are high-temperature rated, highly flame retardant, and very flexible. These heat shrinkable wire marking sleeves meet these specifications for the aerospace industry: SAE-AMS-DTL-23053/5 Class 1, SAE-AS-81531, MIL-STD-202, RoHS compliant.


Article Number: 117341_HX-094-2-WT-SC
Data-sheet: Download here

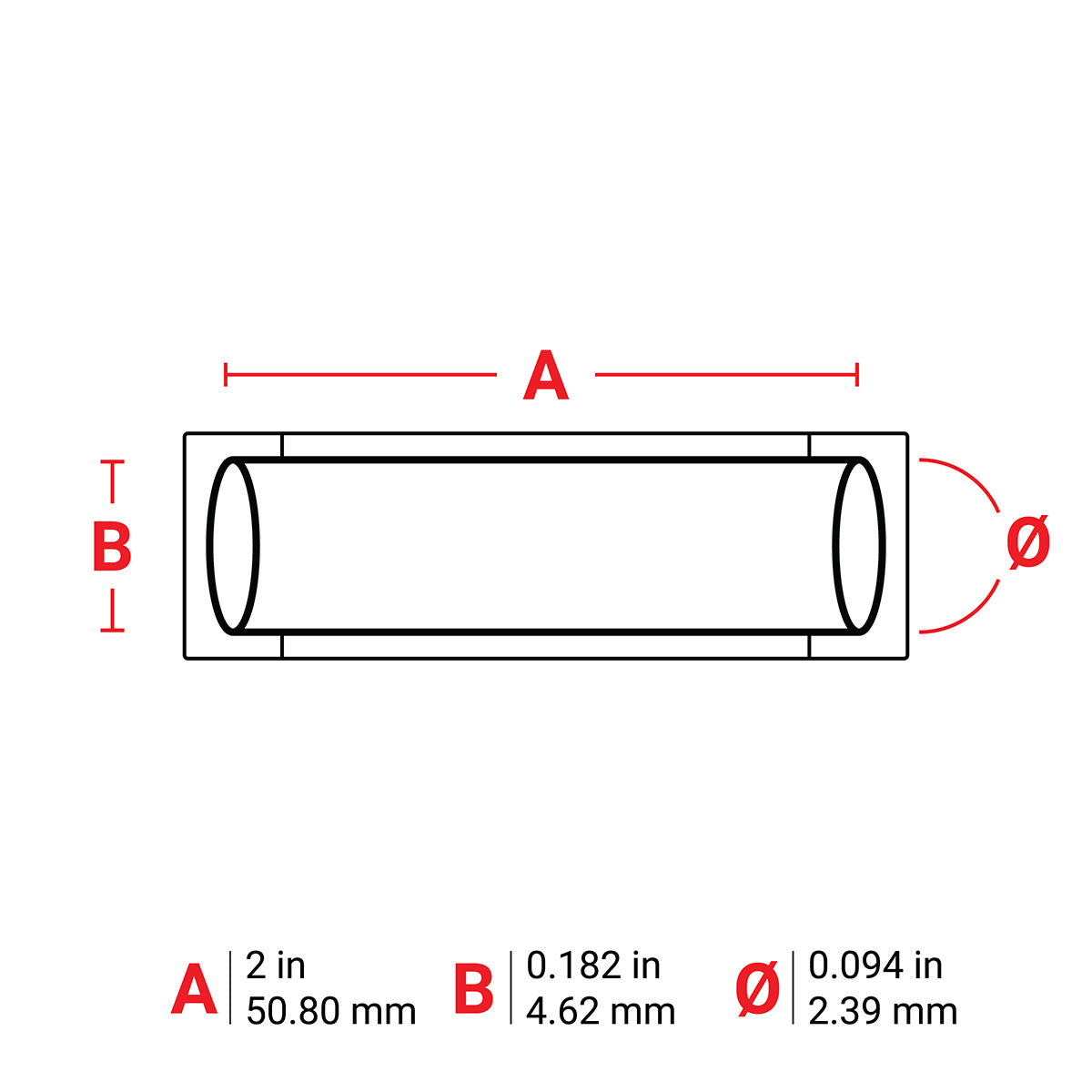

Height: 4.62 mm
Web Width: 88.65 mm
Width: 50.80 mm
Approval Compliance EMEA:
  • UL 224
  • SAE-AMS-DTL-23053/5 (Class 1 and 3)
  • SAE-AS-81531
  • MIL-STD-202 method 215K
  • Tested per ASTM E162
  • ASTM E662
Brady Material Number: B-7642
  • Matt
Label Properties:
  • Heat Shrink
  • Heat-shrink Polyolefin
Material Properties:
  • Heat-shrinkable
Material Type:
  • Polyolefin
Maximum Service Temperature: 120 °C
Minimum Service Temperature: -40 °C
Ressistance Properties:
  • Chemical-resistant
  • Corrosion-resistant
  • Humidity-resistant
  • Self-extinguishing
  • UV-resistant
  • Weather-resistant

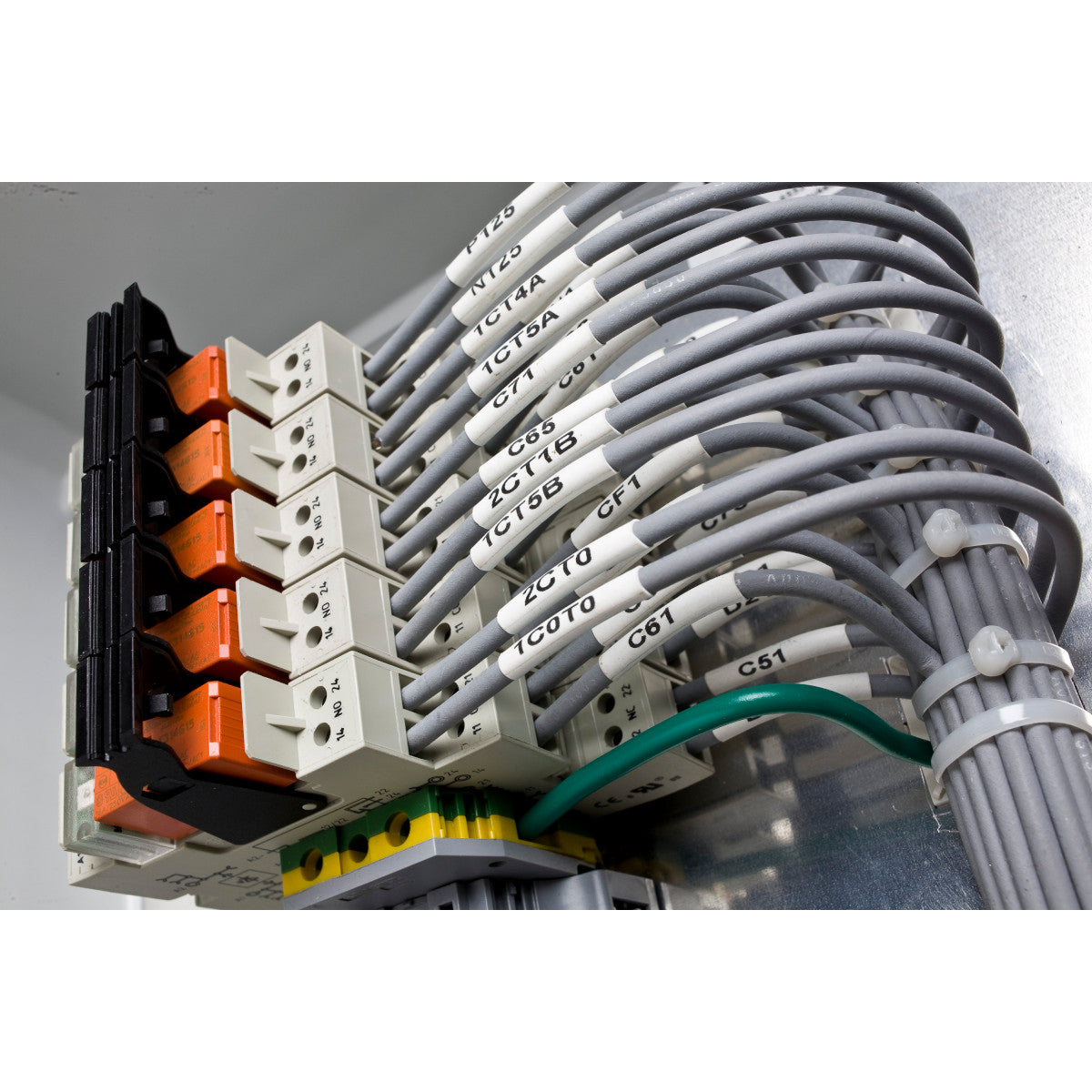

  • Electrical labelling

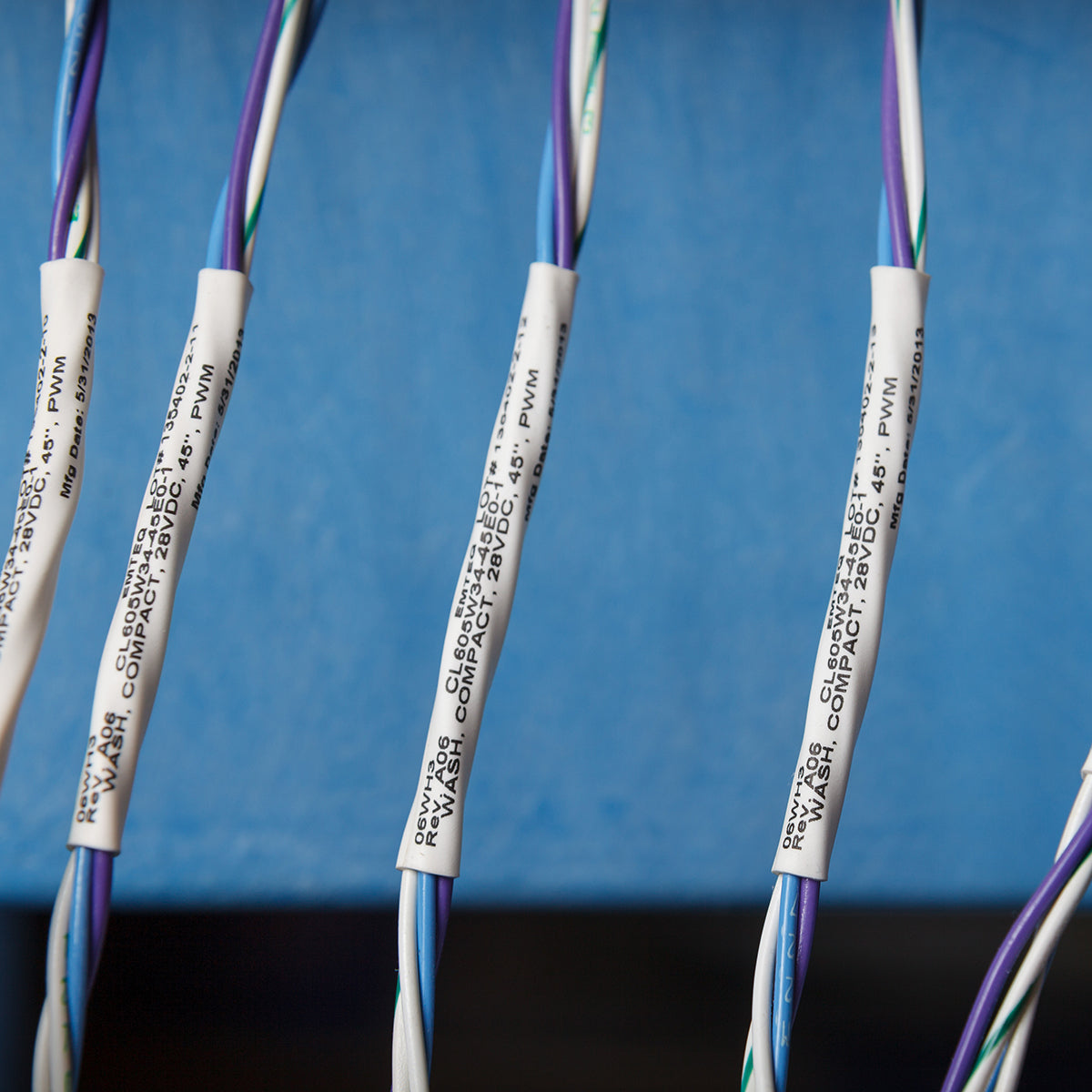

  • Wire and cable labelling
  • White

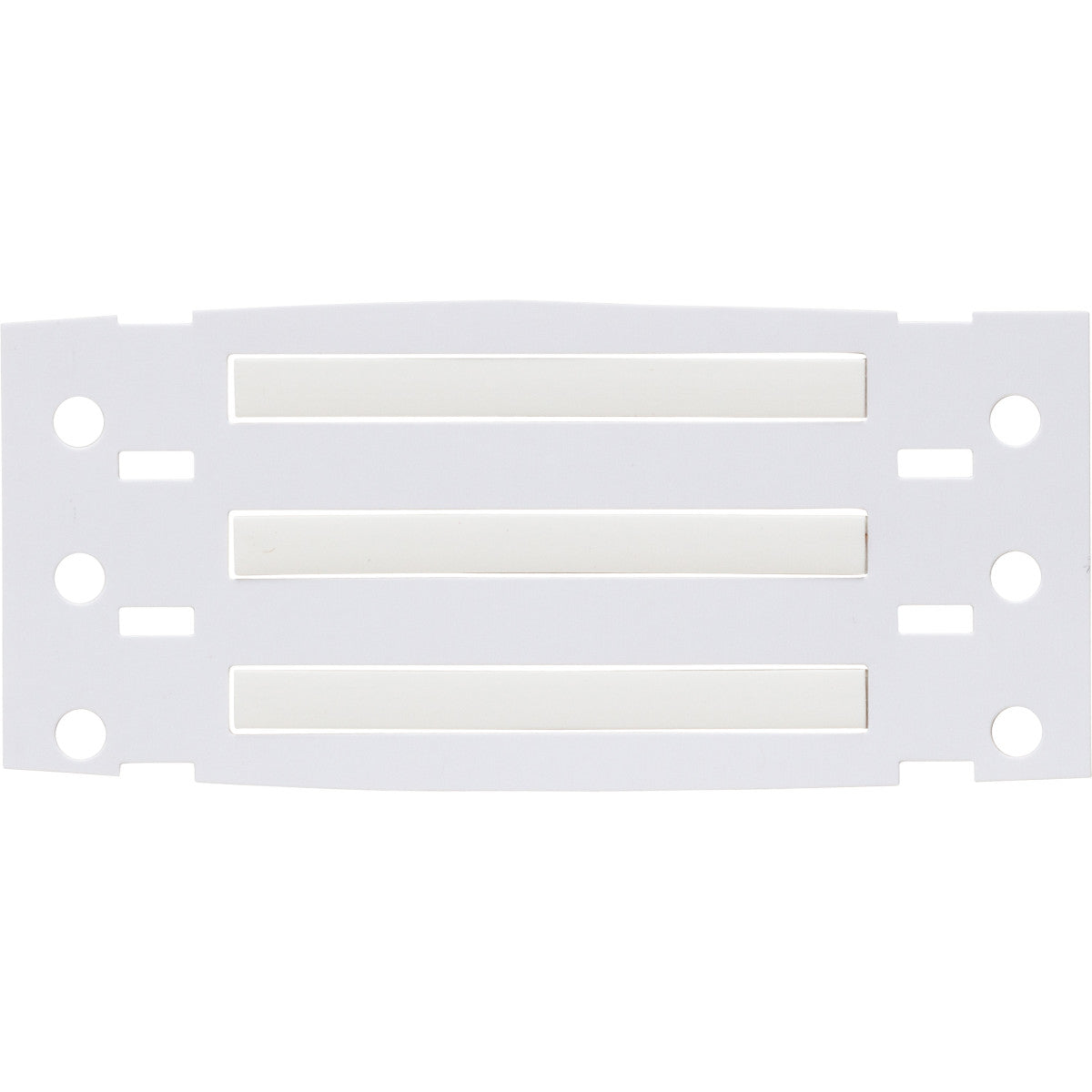

Continuous or Die-Cut: Die-cut
Print Technology:
  • Thermal Transfer
Printer & Label Applications:
  • Wire & Cable
Printer Compatibility:
  • BBP11
  • BBP12
  • THT 25 mm Core Printers
Quantity Per Roll: 500
