Description
** SPECIAL OFFER ** Overstock clearance limited time offer. Brand new. Huge Saving! Only while stocks last.

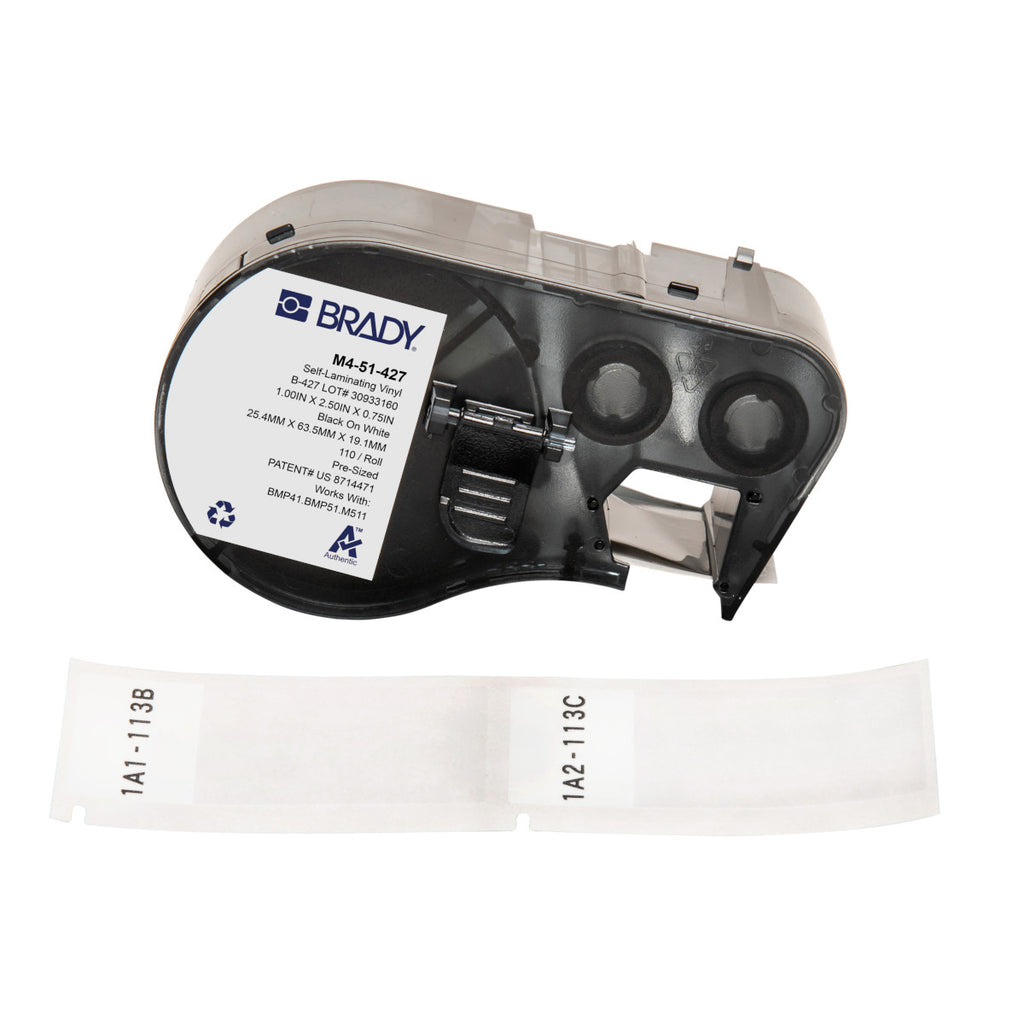

Mark cables and wires with the B-427 self-laminating vinyl label material, designed with a clear self-laminating protective layer. Print almost anywhere with a durable Brady portable label printer.
- Flexible — Designed for tightly-curved surfaces such as wires and cables
- Durable — Self-extinguishing and resistant to abrasion, solvents, oil, grease, weather and extreme temperatures
- Reliable — Made with a permanent acrylic adhesive that works great on smooth, rough, powder-coated and irregular surfaces
- Secure — Made with a clear, non-printable overlaminate for increased protection
- Certified — UL Recognised to UL 2238, RoHS compliant to 2011/65/EU (Pass 2015/863)
- For material specific performance and properties, please refer to the Technical Data Sheet (TDS)
| Specifications | |
|---|---|
| Article Number | 170749 |
| Order Reference | M4-51-427 |
| Total Qty per Pack | 110 Label(s) / Box |
| Minimum Order Quantity | 1 |
| Application(s) | Data and telecommunications labelling, Electrical labelling, Wire and cable labelling |
| Quantity | 110 |
| Laboratory Application | Rods, Straws |
| Voice/Data Application | 25 Pair Copper, 4-12 pair Fibre, Coaxial |
| Brand | Brady® |
| Qty per Roll | 110 |
| Ribbon Series | R4300 |
| Country of Origin | Mexico (MX) |
| Dimensions | |
| Size | 25.40 mm (W) x 63.50 mm (H) |
| Max. Wire/Cable Diameter | 14.20 mm |
| Min. Wire/Cable Diameter | 6.70 mm |
| Wire Diameter Range | 6.70 – 14.20 mm |
| Wire Gauge Range | 6 AWG – 000 AWG |
| Printable Area | 25.40 mm (W) x 19.05 mm (H) |
| Straw Size | 0.50 ml |
| Vertical Repeat | 66.68 mm |
| Vial/Tube | 0.5 mL |
| Web Width | 33.35 mm |
| Material Characteristics | |
| Brady Material No. | B-427 (Self-laminating Vinyl) |
| Properties | Flame-retardant, Self-laminating |
| Thickness | 0.102 mm |
| Colour | Black on White |
| Environment | Freezer, Liquid Nitrogen |
| Max. Service Temp. | 70 °C |
| Min. Service Temp. | -70 °C |
| Adhesive | Permanent Acrylic |
| Finish | Matt |
| Performance | Fuel/Oil-resistant, Highly Pliable, Self-extinguishing |
| Surface | For smooth & textured/rough surfaces |
| Label Properties | Self-laminating & Wrap Around |
| Resistance | Chemical, Humidity, Oil, Water, Weather |
| Printing Specifications | |
| Print Technology | Thermal Transfer |
| Smart Cell | Yes |
| Printer Compatibility | BMP41, BMP51, BMP53, M410, M510, M511 |
| Compliance | |
| UNSPSC | 55121612 |
| RoHS Status | Compliant with Directive 2011/65/EU & 2015/863 |
| REACH SVHC Status | No SVHC present |
| REACH Candidate List Date | 14 June 2023 |
| Approval/Compliance | UL Recognised to UL969 (when printed with Brady Series R4300 & R6200 ribbons). See UL files MH17154. |
| Industry Compliance | UL969A |
Specification
Article Number: 131579_M-51-427
Data-sheet: Download here
Height: 63.50 mm
Thickness: 0.102 mm
Web Width: 33.35 mm
Width: 25.40 mm
Adhesive Type: ["Permanent Acrylic"]
Approval Compliance EMEA: Brady Material Number: B-427
Finish: Indoor or Outdoor Use: Label Properties: Material: Material Properties: Material Type: Maximum Service Temperature: 70 °C
Minimum Service Temperature: -70 °C
Ressistance Properties: Applications: Colour: Continuous or Die-Cut: Die-cut
Print Technology:
Printer & Label Applications:
Printer Compatibility:
Quantity Per Roll: 110
Data-sheet: Download here
Height: 63.50 mm
Thickness: 0.102 mm
Web Width: 33.35 mm
Width: 25.40 mm
Adhesive Type: ["Permanent Acrylic"]
Approval Compliance EMEA: Brady Material Number: B-427
Finish: Indoor or Outdoor Use: Label Properties: Material: Material Properties: Material Type: Maximum Service Temperature: 70 °C
Minimum Service Temperature: -70 °C
Ressistance Properties: Applications: Colour: Continuous or Die-Cut: Die-cut
Print Technology:
Printer & Label Applications:
Printer Compatibility:
Quantity Per Roll: 110
