Description

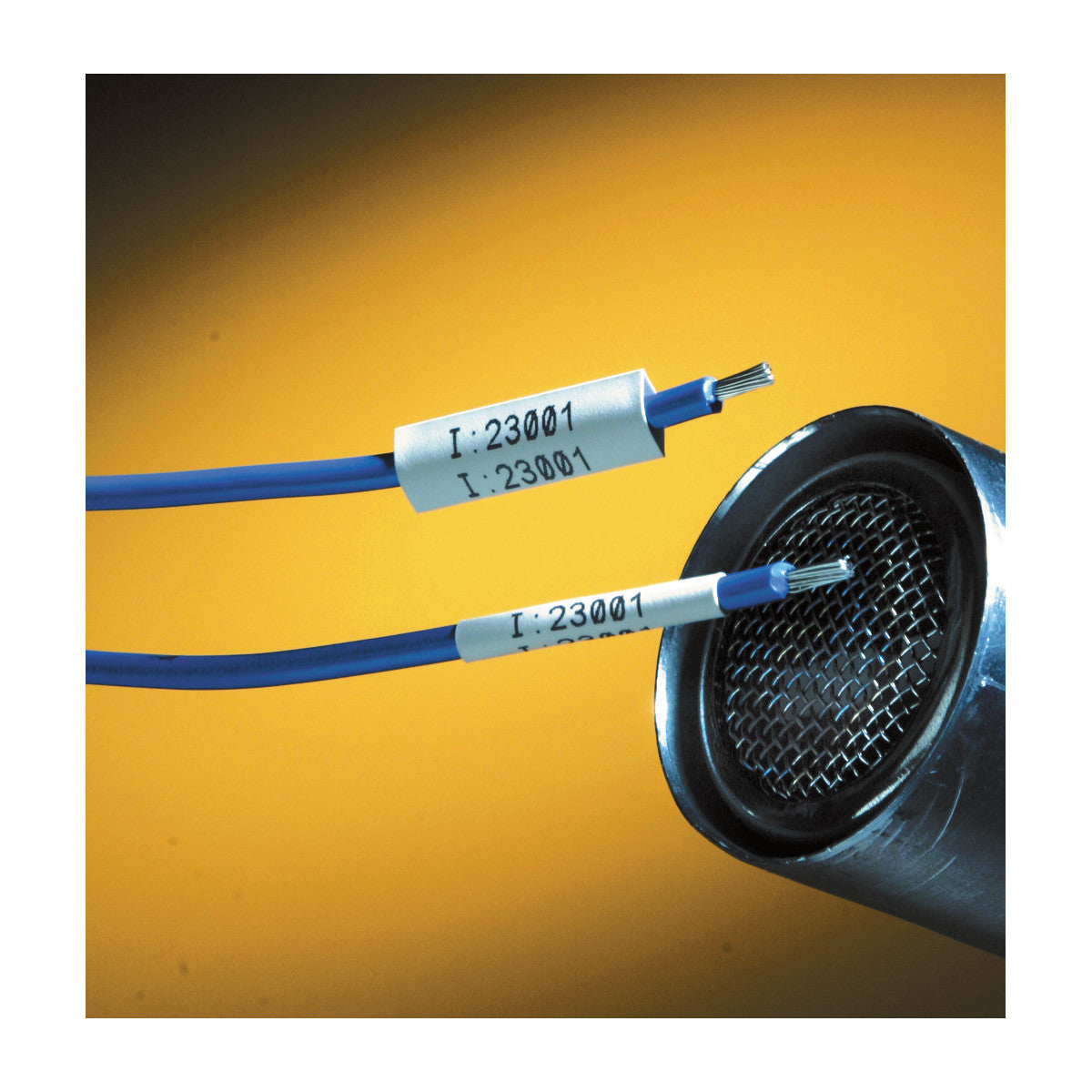

PermaSleeve Heat Shrink Wire and Cable Labels for M710 and BMP71. PermaSleeve® PS Heat-Shrink Polyolefin (B-342) wire marking sleeves combine speed, ease of use, and permanence to create long-lasting, high quality identification.. 3:1 heat shrinkable sleeve fit snugly around wires for maximum insulation protection and permanent identification. Fade-resistant and smudge-proof for superior aesthetic appearance. Cold resistant and flame-retardant with an operating temperature of -67°F to 275°F (-55°C to 135°C). Meets SAE-AMS-DTL-23053/5C (Class 1), SAE-AS-81531, MIL-STD-202;RoHS Compliant;and UL Recognized A ribbon is required to print this material. Use Part Number M7-R4300
Specification
Article Number: 174578_M7-250-1-342
Data-sheet: Download here

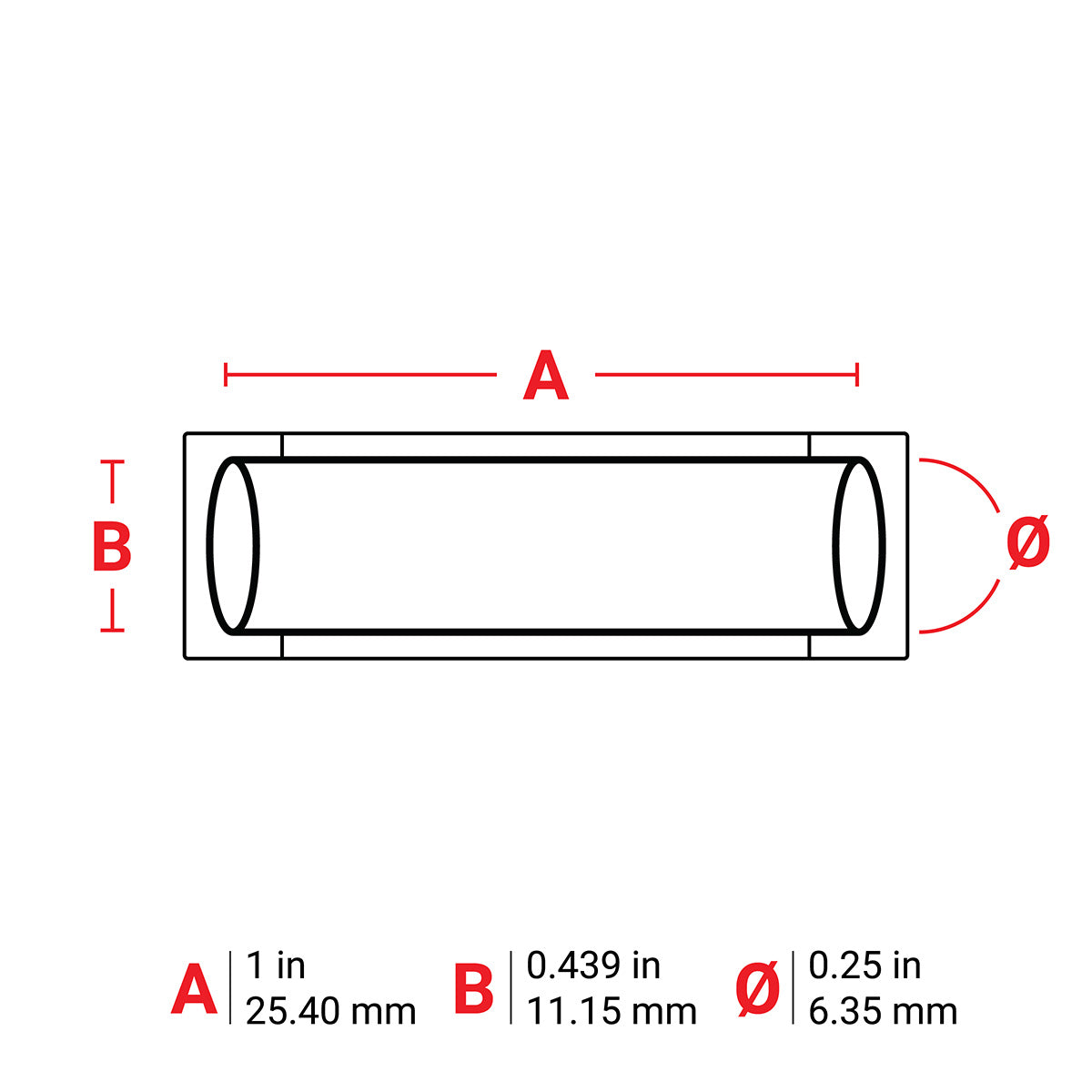

Height: 11.15 mm
Web Width: 46.02 mm
Width: 25.40 mm
Approval Compliance EMEA: Brady Material Number: B-342
Finish: Label Properties: Material: Material Properties: Material Type: Maximum Service Temperature: 135 °C
Minimum Service Temperature: -55 °C
Ressistance Properties: Applications: Colour: Continuous or Die-Cut: Die-cut
Print Technology:
Printer & Label Applications:
Printer Compatibility:
Quantity Per Roll: 100
Data-sheet: Download here
Height: 11.15 mm
Web Width: 46.02 mm
Width: 25.40 mm
Approval Compliance EMEA: Brady Material Number: B-342
Finish: Label Properties: Material: Material Properties: Material Type: Maximum Service Temperature: 135 °C
Minimum Service Temperature: -55 °C
Ressistance Properties: Applications: Colour: Continuous or Die-Cut: Die-cut
Print Technology:
Printer & Label Applications:
Printer Compatibility:
Quantity Per Roll: 100
