Brady M7-250-175-342 PermaSleeve Heat Shrink Wire and Cable Labels for M710 and BMP71 174582


Price:
Sale price
£85.49

Description

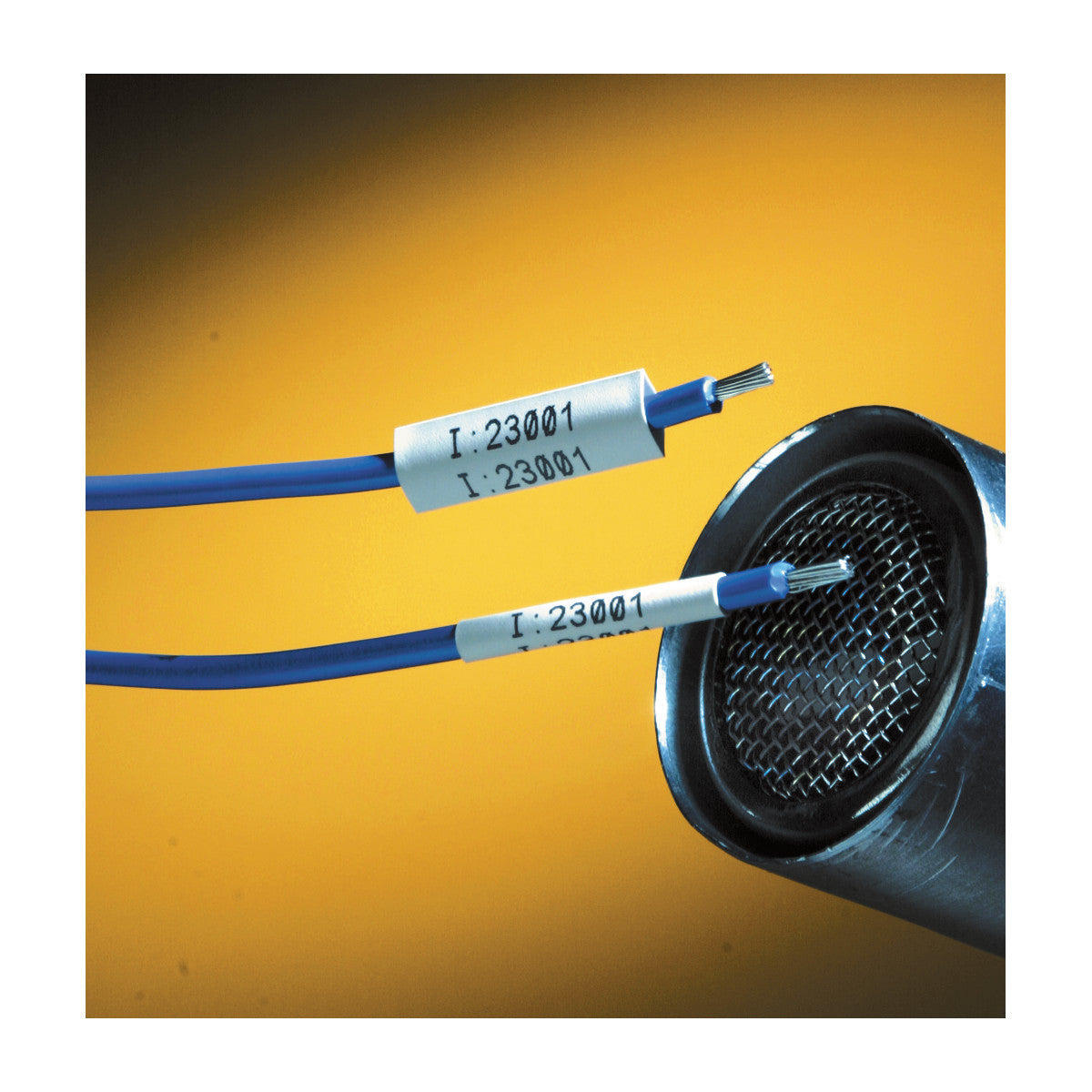

PermaSleeve Heat Shrink Wire and Cable Labels for M710 and BMP71. PermaSleeve® PS Heat-Shrink Polyolefin (B-342) wire marking sleeves combine speed, ease of use, and permanence to create long-lasting, high quality identification.. 3:1 heat shrinkable sleeve fit snugly around wires for maximum insulation protection and permanent identification. Fade-resistant and smudge-proof for superior aesthetic appearance. Cold resistant and flame-retardant with an operating temperature of -67°F to 275°F (-55°C to 135°C). Meets SAE-AMS-DTL-23053/5C (Class 1), SAE-AS-81531, MIL-STD-202;RoHS Compliant;and UL Recognized A ribbon is required to print this material. Use Part Number M7-R4300

Specification

Article Number: 174582_M7-250-175-342
Data-sheet: Download here

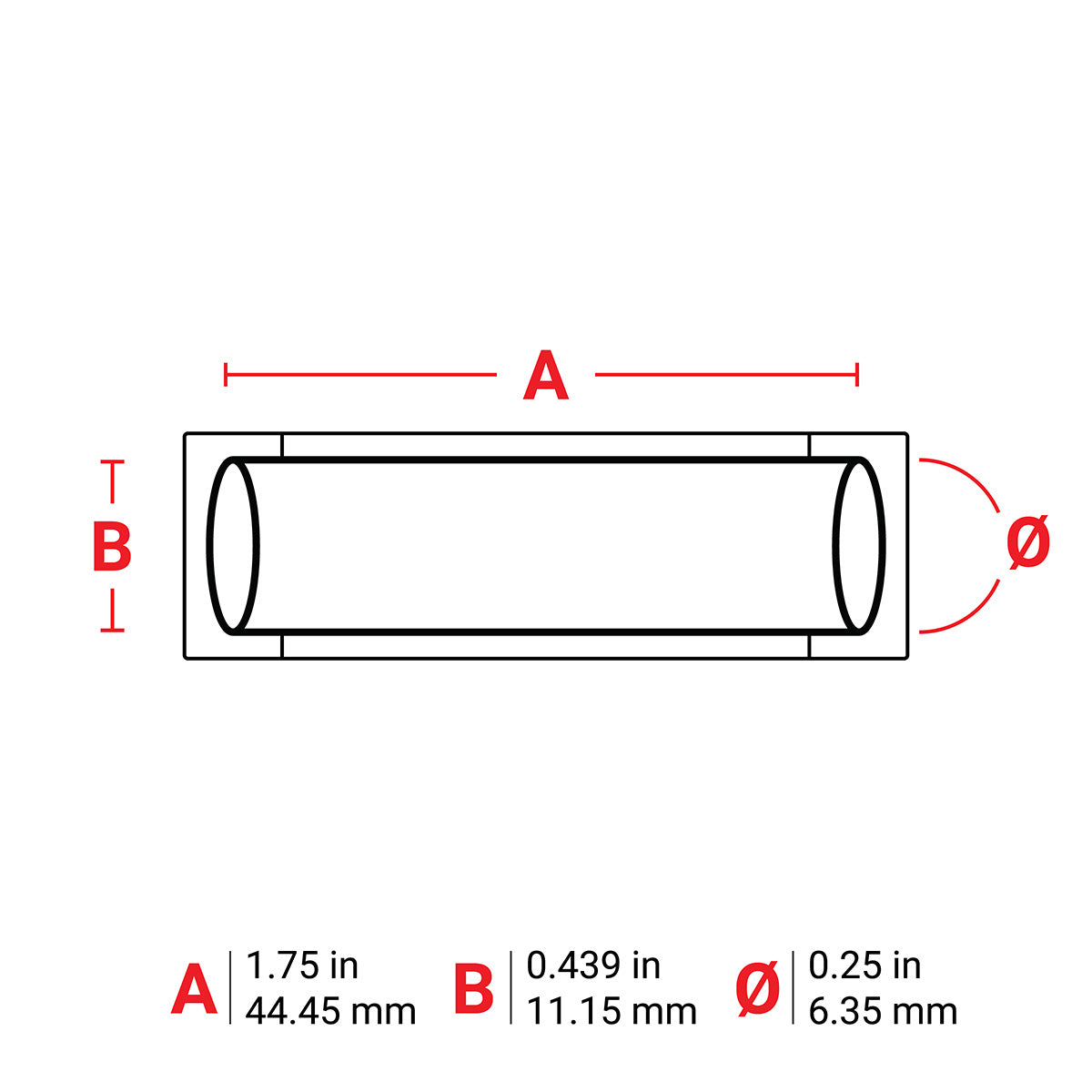

Height: 11.15 mm
Web Width: 57.15 mm
Width: 44.45 mm
Approval Compliance EMEA:
  • UL Recognised to UL224
  • SAE-AMS-DTL-23053/5 C (Class 1)
  • SAE-AS-81531
Brady Material Number: B-342
Finish:
  • Matt
Label Properties:
  • Heat Shrink
Material:
  • Heat-shrink Polyolefin
Material Properties:
  • Flame-retardant
  • Heat-shrinkable
Material Type:
  • Polyolefin
Maximum Service Temperature: 135 °C
Minimum Service Temperature: -55 °C
Ressistance Properties:
  • Chemical-resistant
  • Corrosion-resistant
  • Humidity-resistant
  • Smear-resistant
  • UV-resistant
  • Weather-resistant
Applications:
  • Electrical labelling

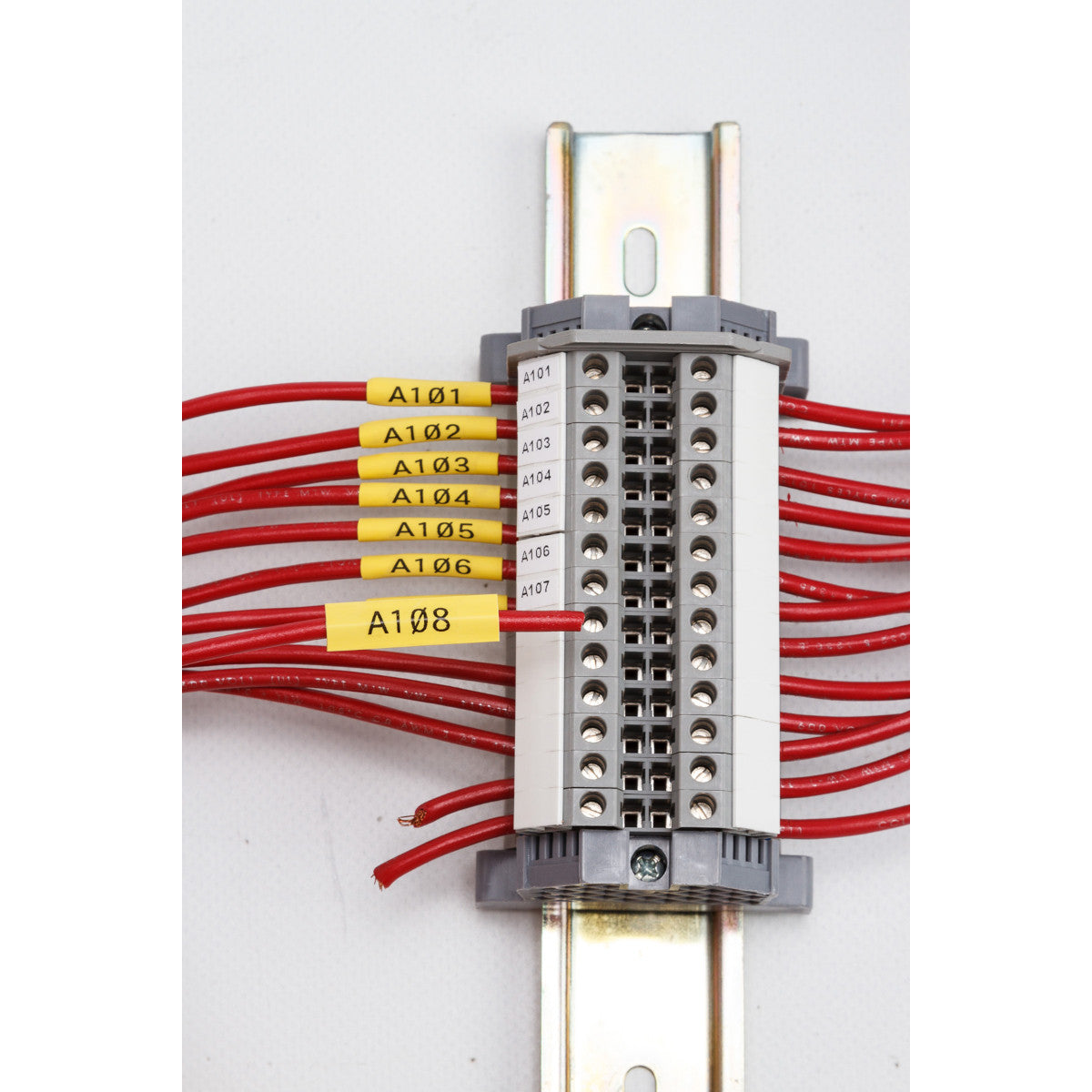

  • Wire and cable labelling
Colour:
  • White
Continuous or Die-Cut: Die-cut
Print Technology:
  • Thermal Transfer

Printer & Label Applications:
  • Wire & Cable

Printer Compatibility:
  • M710
  • BMP71

Quantity Per Roll: 100
