Brady PS-094-150-WT-4 PermaSleeve Wire Marking Sleeves 622401

Article Number: 622401_PS-094-150-WT-4
Data-sheet: Download here

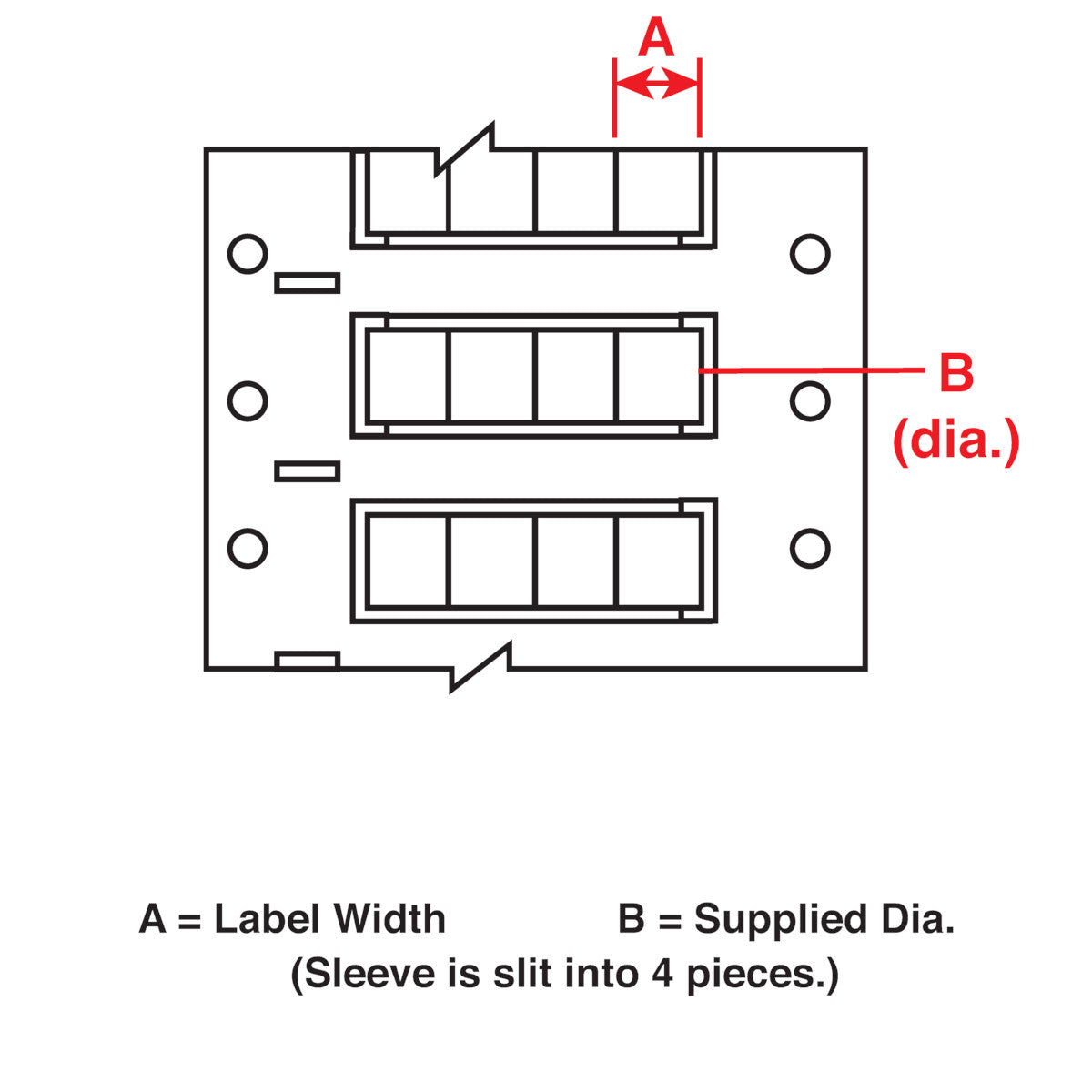

Height: 4.62 mm
Web Width: 88.65 mm
Width: 9.53 mm
Approval Compliance EMEA:

• UL Recognised to UL224
• SAE-AMS-DTL-23053/5 C (Class 1)
• SAE-AS-81531

Brady Material Number: B-342
Finish:

• Matt

Label Properties:

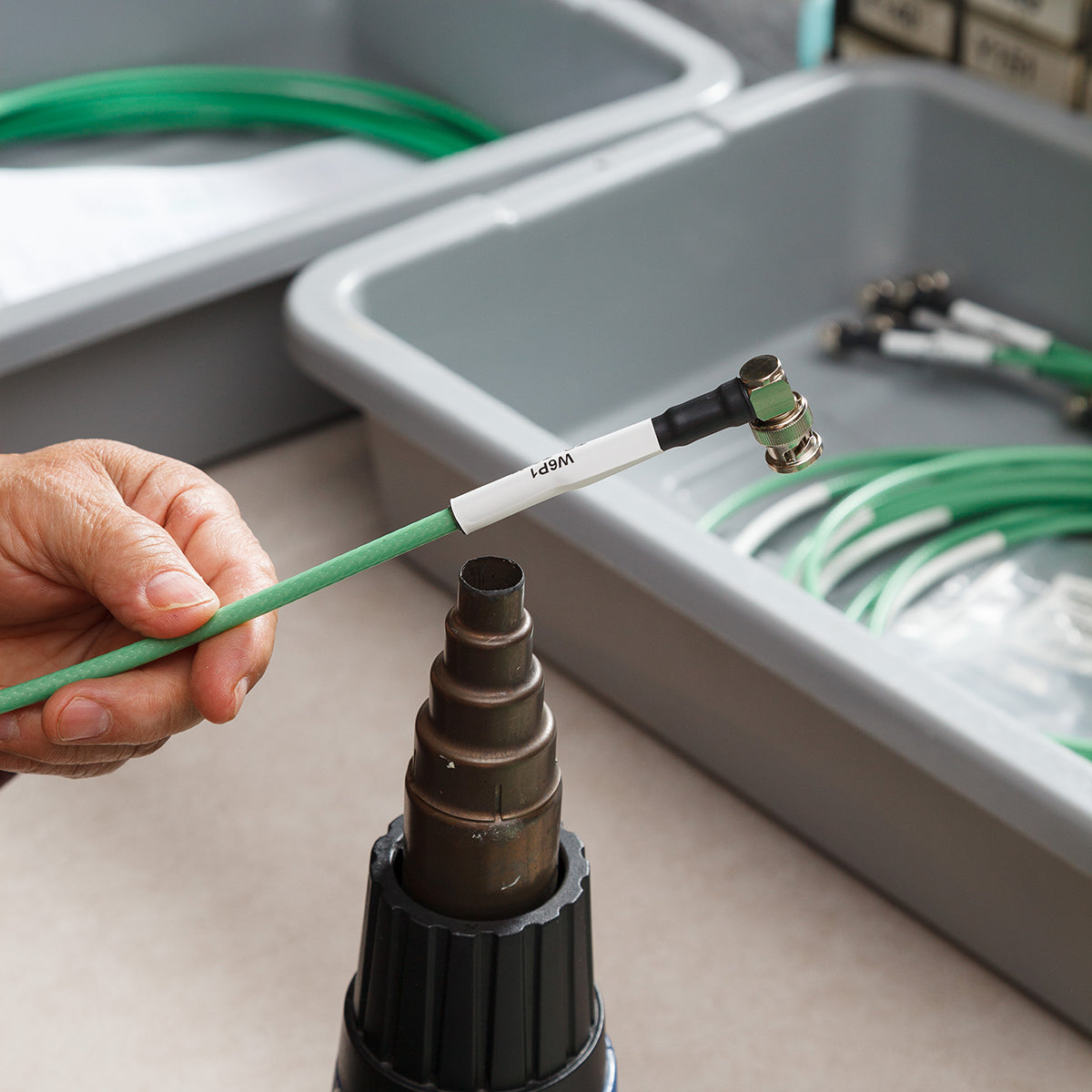

• Heat Shrink

Material:

• Heat-shrink Polyolefin

Material Properties:

• Flame-retardant
• Heat-shrinkable

Material Type:

• Polyolefin

Maximum Service Temperature: 135 °C
Minimum Service Temperature: -55 °C
Ressistance Properties:

• Chemical-resistant
• Corrosion-resistant
• Humidity-resistant
• Smear-resistant
• UV-resistant
• Weather-resistant

Applications:

• Electrical labelling
• Wire and cable labelling

Colour:

• White

Continuous or Die-Cut: Die-cut
Print Technology:

• Thermal Transfer

Printer & Label Applications:

• Wire & Cable

Printer Compatibility:

• BBP72
• i7100
• PR Plus
• IP Series
• THT 76 mm Core Printers

Quantity Per Roll: 10000
Special Properties:

• R-4300
• R-4502S
• R-6700
• R-5000
