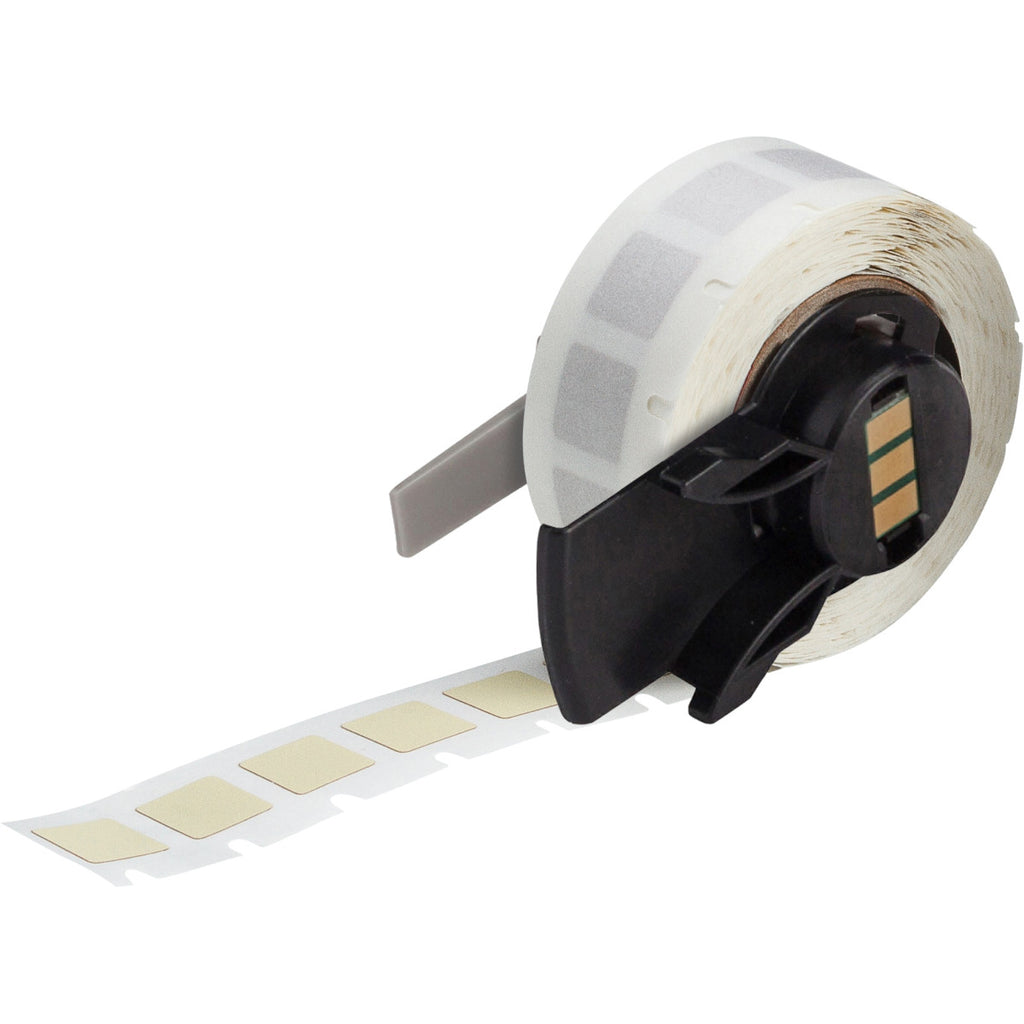

Brady PTL-4-724 Polyimide Labels For M611, Bmp61 And Bmp71 139856

Article Number: 139856_PTL-4-724
Data-sheet: Download here

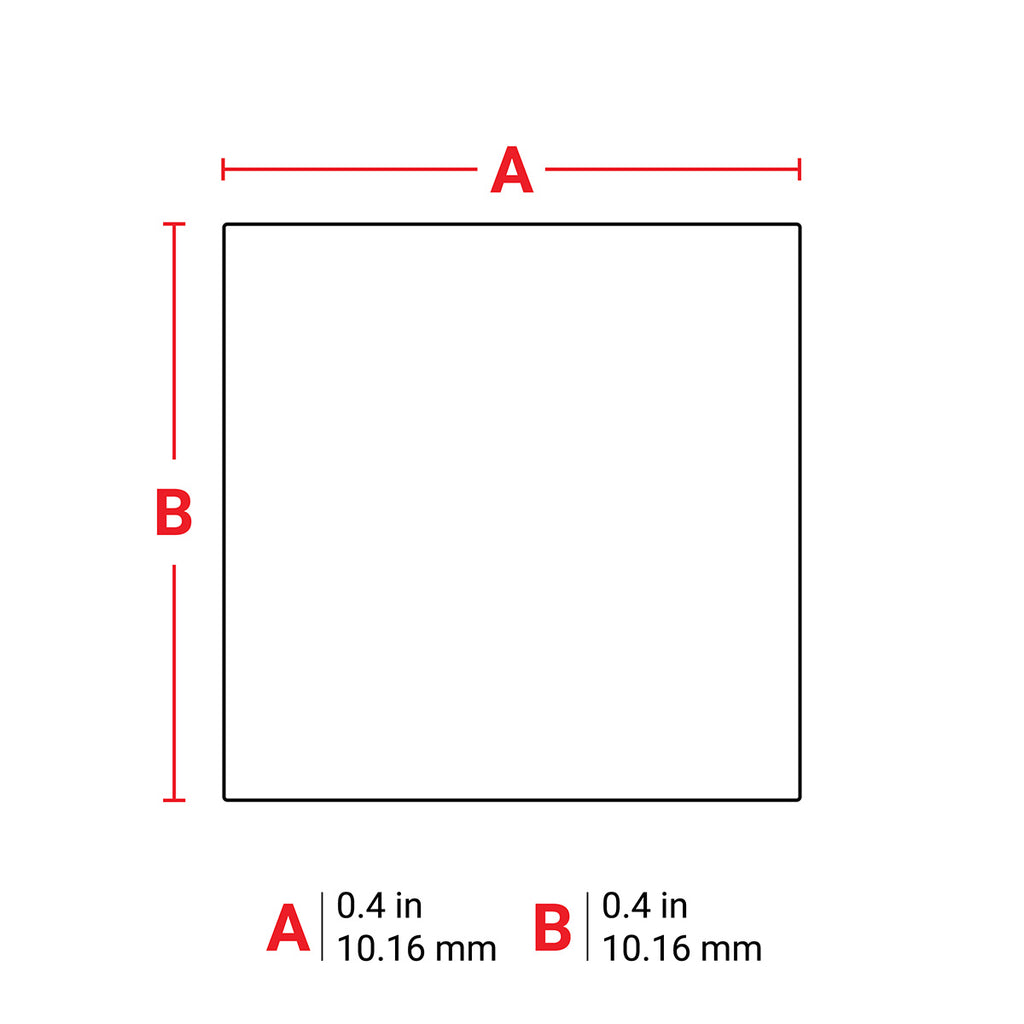

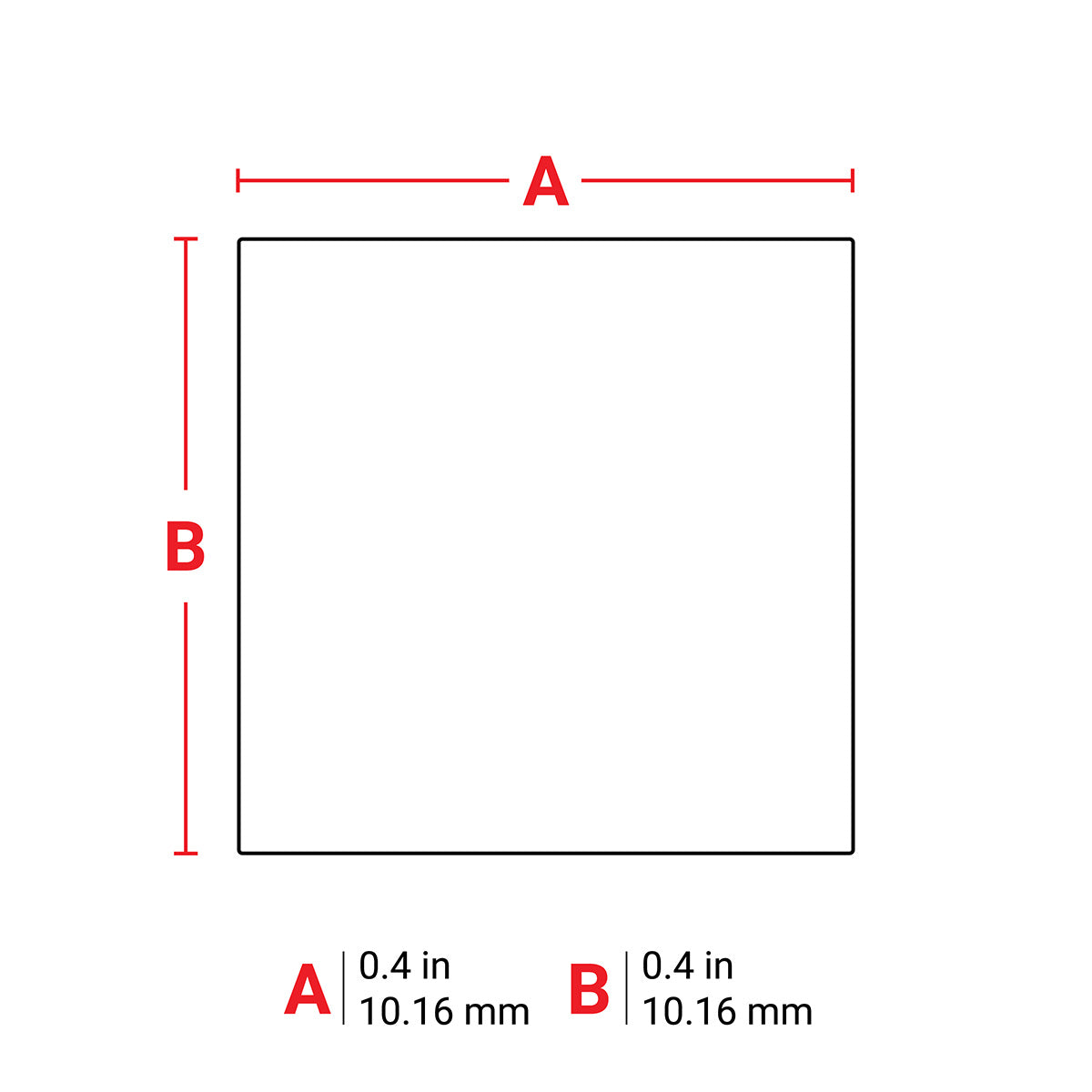

Height: 10.16 mm
Thickness: 0.112 mm
Web Width: 20.62 mm
Width: 10.16 mm
Adhesive Type: ["Permanent Acrylic"]
Approval Compliance EMEA:

• Meets the performance requirements of MIL -STD-202G, Notice 12, Method 215K
• Meets the requirements of SAE AS81531 Marking of Electrical Insulating Material

Brady Material Number: B-724
Finish:

• Matt

Indoor or Outdoor Use:

• Indoor Use

Label Properties:

• Heat Resistant
• Permanent Adhesive

Material:

• Polyimide

Material Type:

• Polyimide

Maximum Service Temperature: 300 °C
Minimum Service Temperature: -70 °C
Ressistance Properties:

• Abrasion-resistant
• Chemical-resistant
• Corrosion-resistant
• Humidity-resistant
• Wave Solder-resistant
• Weather-resistant

Applications:

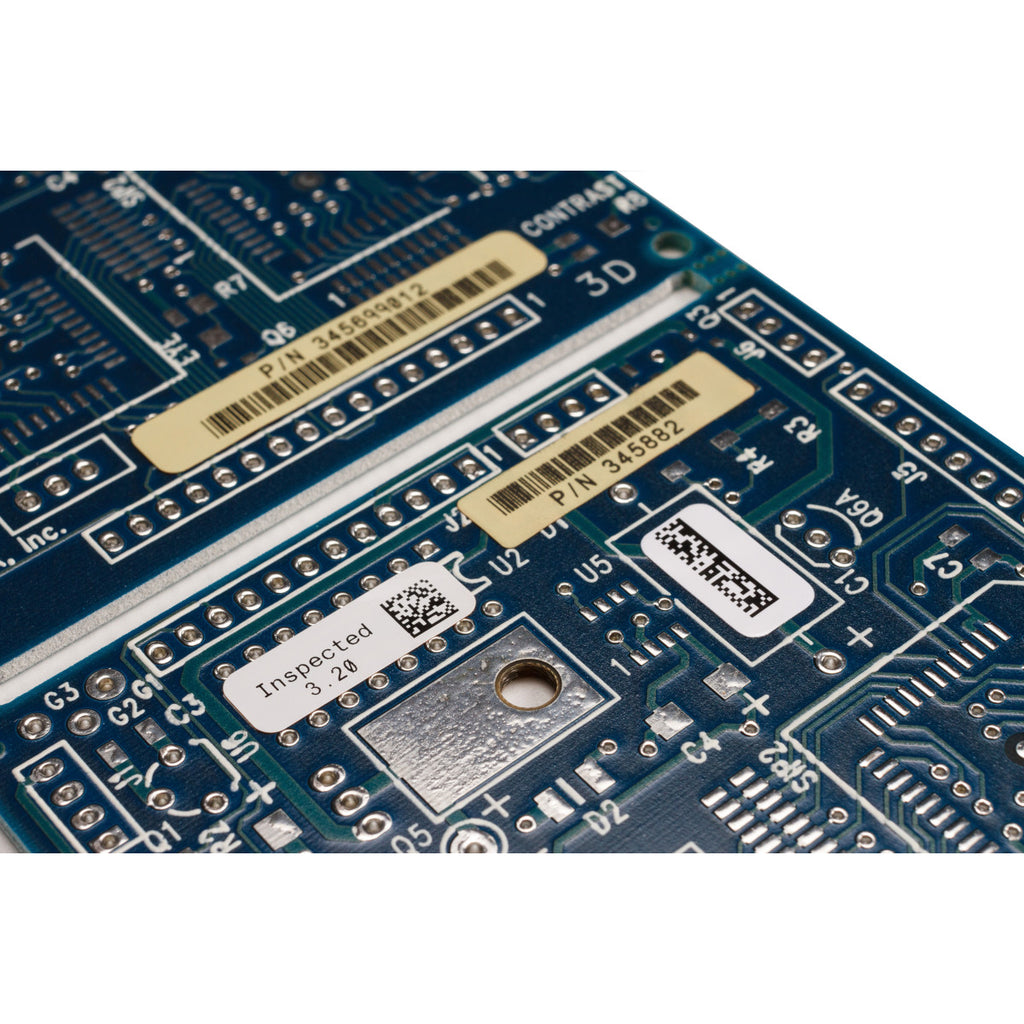

• Circuit board labelling
• Component and equipment labelling

Colour:

• Amber

Continuous or Die-Cut: Die-cut
Print Technology:

• Thermal Transfer

Printer & Label Applications:

• Circuit Board
• General Identification

Printer Compatibility:

• BMP61
• BMP71 (with media adapter)

Quantity Per Roll: 500
Shape: Square
Special Properties:

• Excellent resistance to harsh fluxing and wave solder environments, Resists all commonly employed methods of cleaning
